- Articulating boom
Two-point pivotproviding 270º articulation - Integral Balancer
Integrated 150,200, 350, or 500lb balancer - Low inertia
Rear-mount balancer offers lowest rotational intertia of all models, reducing operator fatigue - Low profile
Short stack-up for low headroomapplications - Flexible mounting
Carriage mounted for overhead rail transfer applications or column mounted for stationary applications - Flexible reach

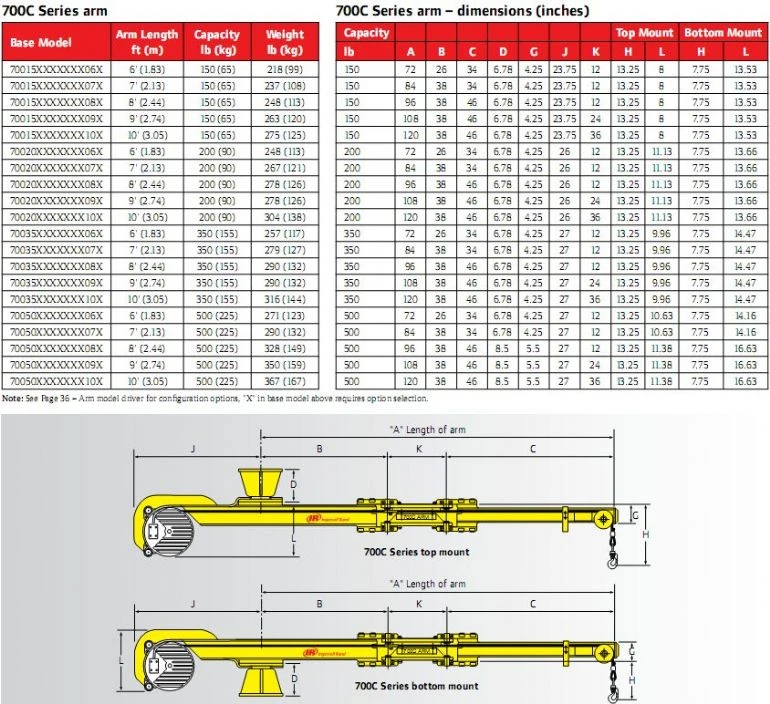

Arm lengths of 6 ft (1.83 m), 7 ft (2.13 m), 8 ft (2.44 m), 9 ft (2.74 m), and 10 ft (3.05 m) available
700C Series Arm Systems

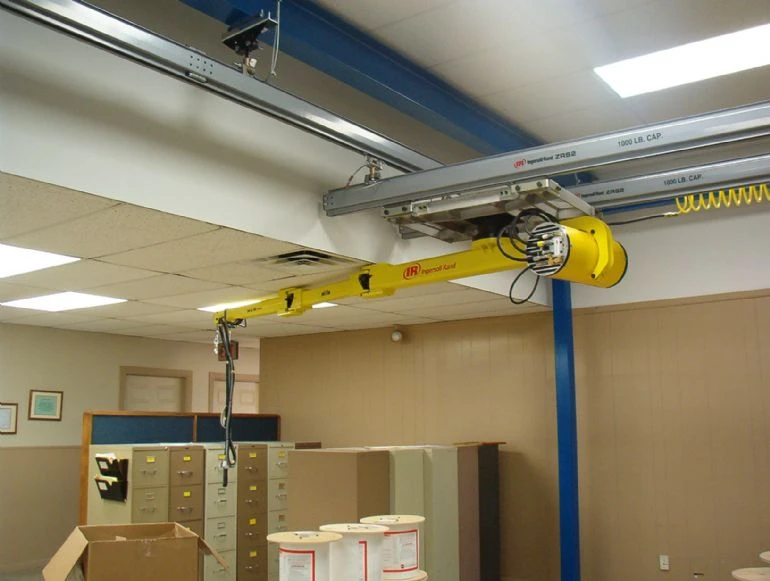

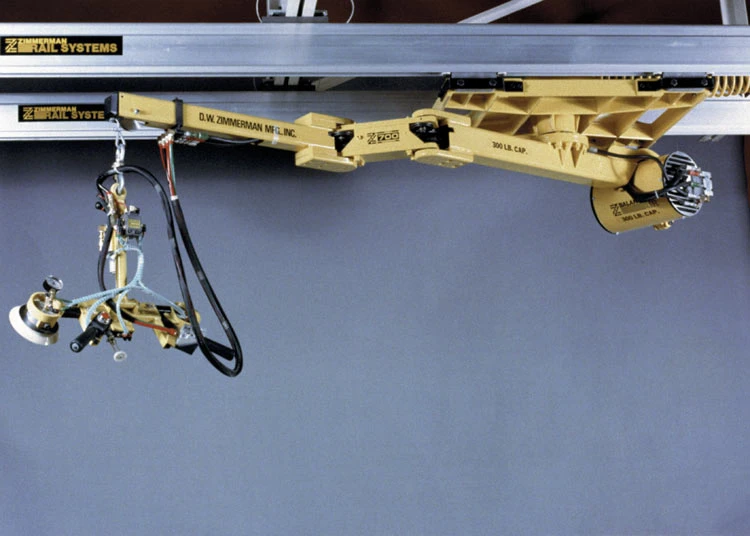

The 700C Arm is a “banjo" arm consisting of three connecting linkages which allows the boom/balancer combination to cover a large area. The arm can fold into itself and articulate 270 degrees to reach around columns, posts or other interference points. The 700C has a short stack-up, which is useful for low headroom applications because it minimizes interference with the operator. The balancer is mounted at the rear of the arm and pulleys in the center section route the wire rope to the front of the arm. Customer will need to specify balancer type, mounting option, carriage type, arm length and balancer controls when ordering.
