Low & Ultra-low Headroom Liftchain Hydraulic BOP Handling Systems

Controls

Ingersoll Rand Hydraulic BOP handling systems can be delivered with a full flow control, meaning that up-down and forward-reverse commands are coming directly from an independent control panel of the rig. This type of control is recommended when the operator has the manage various machines from a unique control room.

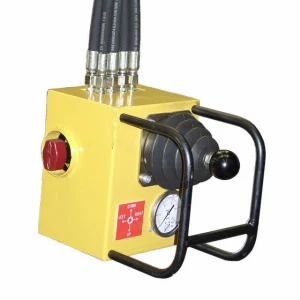

The pendant joystick control allows the operator to manage the various motions from a single throttle lever. On CE versions, a side 1/4 turn valve can shut down the system for emergency stop.

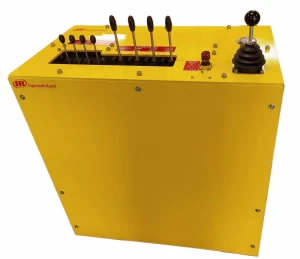

Ingersoll Rand engineers have designed various remote control stations from where several hoists can be managed. Typical console includes several individual controls and one simultaneous control joystick to run a complete BOP handling system.

Ingersoll Rand engineers have designed various remote control stations from where several hoists can be managed. Typical console includes several individual controls and one simultaneous control joystick to run a complete BOP handling system.

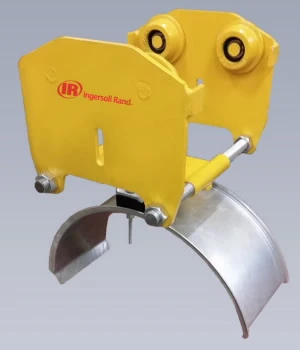

Festoon Trolley

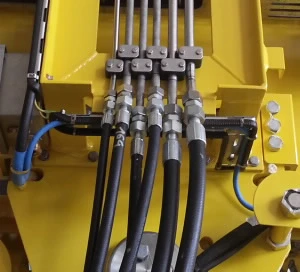

Standard hose kits are made of several hoses with 316 stainless steel press fittings at each end and a connecting manifold to be bolted on the beam end. These hose kits exist for either full flow control or joystick pendant control versions.

Retention Lug

This additional hanging point on the hoist trolley assembly allows for suspending the BOP stack for storage. While using the retention lug, the hoist drive and brake mechanism are not subject to vibrations under load tension. Light maintenance operations can also be performed on the hoist while the BOP is secured using this lug.
