Zim Air (ZA) Series (Zimmerman) Balancers

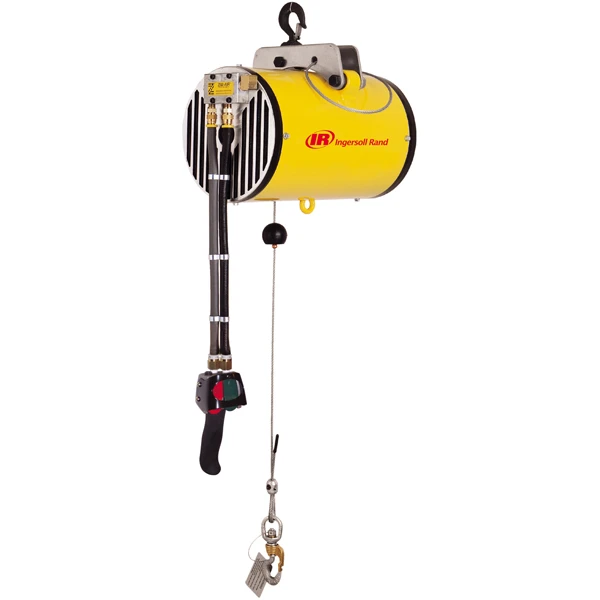

Ingersoll Rand Zim Air (ZA) Series Balancers (Zimmerman) are the most common air balancer/control combination, designed for high-speed, precision handling of variable weight loads. Up/down movement is accomplished through the use of an ergonomically designed pendant with low-effort, color coded thumb levers. After positioning the load with the pendant control, the unit defaults into a balanced load condition that allows the operator up to 18 inches (457 mm) of travel to manually adjust the load for final positioning.

Contact Us
Request a Quote
Aftermarket

DURABILITY: Balancers feature all-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook.

RELIABILITY: Features include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation.

SAFETY

  • Standard emergency cable retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake automatically stops the rapid upward cable travel.
  • If the air supply is ever interrupted, the unit will maintain the load in the suspended position.
  • The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure, providing intrinsic overload protection.
  • The optional Z-stop eliminates the down-drift of suspended loads within 6 inches (152 mm) if air supply is shut down.

PRODUCTIVITY: Gain flexibility, with ultra-low air consumption, clean oil free operation, and cable travels of up to 120 inches depending on model.

  • Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations

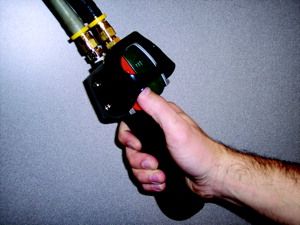

  • Ergonomic Up/Down pendant control for variable speed and feathering of load position

<table>

<thead>

<tr>

<th>ModelName</th>

<th>Vertical Travel mm</th>

<th>Capacity at 100 psi kg</th>

<th>Vertical Travel in.</th>

<th>Net weight kg</th>

<th>Capacity at 100 psi lbs</th>

<th>Diameter of Balancer mm</th>

<th>Diameter of Balancer in.</th>

<th>Net weight lbs</th>

</tr>

</thead>

<tbody>

<tr>

<td>ZAW015080</td>

<td>2032</td>

<td>68</td>

<td>80</td>

<td>23</td>

<td>150</td>

<td>165</td>

<td>6.5</td>

<td>50</td>

</tr>

<tr>

<td>ZAW020120</td>

<td>3048</td>

<td>90</td>

<td>120</td>

<td>28</td>

<td>200</td>

<td>254</td>

<td>10</td>

<td>62</td>

</tr>

<tr>

<td>ZAW020120S</td>

<td>3048</td>

<td>90</td>

<td>120</td>

<td>28</td>

<td>200</td>

<td>254</td>

<td>10</td>

<td>62</td>

</tr>

<tr>

<td>ZAW032080S</td>

<td>2032</td>

<td>147</td>

<td>80</td>

<td>28</td>

<td>325</td>

<td>254</td>

<td>10</td>

<td>62</td>

</tr>

<tr>

<td>ZAW035080</td>

<td>2032</td>

<td>158</td>

<td>80</td>

<td>28</td>

<td>350</td>

<td>254</td>

<td>10</td>

<td>62</td>

</tr>

<tr>

<td>ZAW040060</td>

<td>1524</td>

<td>181</td>

<td>60</td>

<td>30</td>

<td>400</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>67</td>

</tr>

<tr>

<td>ZAW040060S</td>

<td>1524</td>

<td>181</td>

<td>60</td>

<td>30</td>

<td>400</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>67</td>

</tr>

<tr>

<td>ZAW040120</td>

<td>3048</td>

<td>181</td>

<td>120</td>

<td>56</td>

<td>400</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>124</td>

</tr>

<tr>

<td>ZAW040120S</td>

<td>3048</td>

<td>181</td>

<td>120</td>

<td>56</td>

<td>400</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>124</td>

</tr>

<tr>

<td>ZAW050080</td>

<td>2032</td>

<td>227</td>

<td>80</td>

<td>50</td>

<td>500</td>

<td>254</td>

<td>10</td>

<td>110</td>

</tr>

<tr>

<td>ZAW050080S</td>

<td>2032</td>

<td>227</td>

<td>80</td>

<td>50</td>

<td>500</td>

<td>254</td>

<td>10</td>

<td>110</td>

</tr>

<tr>

<td>ZAW065040S</td>

<td>1016</td>

<td>294</td>

<td>40</td>

<td>30</td>

<td>650</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>67</td>

</tr>

<tr>

<td>ZAW065080S</td>

<td>2032</td>

<td>294</td>

<td>80</td>

<td>56</td>

<td>650</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>124</td>

</tr>

<tr>

<td>ZAW070040</td>

<td>1016</td>

<td>317</td>

<td>40</td>

<td>30</td>

<td>700</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>67</td>

</tr>

<tr>

<td>ZAW070080</td>

<td>2032</td>

<td>317</td>

<td>80</td>

<td>56</td>

<td>700</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>124</td>

</tr>

<tr>

<td>ZAW080060</td>

<td>1524</td>

<td>360</td>

<td>60</td>

<td>59</td>

<td>800</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>129</td>

</tr>

<tr>

<td>ZAW080060S</td>

<td>1524</td>

<td>360</td>

<td>60</td>

<td>59</td>

<td>800</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>129</td>

</tr>

<tr>

<td>ZAW100040</td>

<td>1016</td>

<td>453</td>

<td>40</td>

<td>52</td>

<td>1000</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>115</td>

</tr>

<tr>

<td>ZAW100040S</td>

<td>1016</td>

<td>453</td>

<td>40</td>

<td>52</td>

<td>1000</td>

<td>254 (Reeved)</td>

<td>10 (Reeved)</td>

<td>115</td>

</tr>

<tr>

<td>ZAW100080</td>

<td>2032</td>

<td>453</td>

<td>80</td>

<td>100</td>

<td>1000</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>220</td>

</tr>

<tr>

<td>ZAW100080S</td>

<td>2032</td>

<td>453</td>

<td>80</td>

<td>100</td>

<td>1000</td>

<td>254 + 254 (Tandem)</td>

<td>10 + 10 (Tandem)</td>

<td>220</td>

</tr>

<tr>

<td>ZAW130040S</td>

<td>1016</td>

<td>589</td>

<td>40</td>

<td>59</td>

<td>1300</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>129</td>

</tr>

<tr>

<td>ZAW140040</td>

<td>1016</td>

<td>620</td>

<td>40</td>

<td>59</td>

<td>1400</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>129</td>

</tr>

<tr>

<td>ZAW200040</td>

<td>1016</td>

<td>900</td>

<td>40</td>

<td>102</td>

<td>2000</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>225</td>

</tr>

<tr>

<td>ZAW200040S</td>

<td>1016</td>

<td>900</td>

<td>40</td>

<td>102</td>

<td>2000</td>

<td>254 + 254 (Tandem Reeved)</td>

<td>10 + 10 (Tandem Reeved)</td>

<td>225</td>

</tr>

</tbody>

</table>

IRP-Product-Photo-zimmerman-zim-air

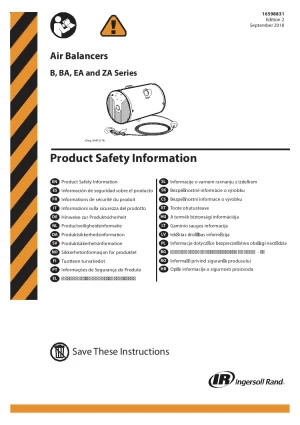

Product Safety Information, Air Balancers, B, BA, EA and ZA Series

IRP-Product-Photo-zimmerman-zim-air-V1

Ergonomic Handling Systems - IRITS-0309-035

IRP-Product-Photo-zimmerman-zim-air-V2

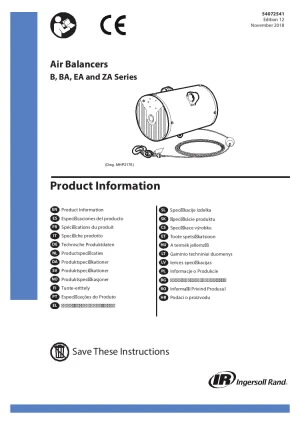

Product Information, Air Balancers, B, BA, EA and ZA Series

IRP-Product-Photo-zimmerman-zim-air-V3

Installation Information, Air Balancers, B, BA, EA and ZA Series

IRP-Product-Photo-zimmerman-zim-air-V4

Product Parts Information, Air Balancers, B, BA, EA and ZA Series

IRP-Product-Photo-zimmerman-zim-air-V5

Product Maintenance Information, Air Balancers, Series ZE, EA and BA
