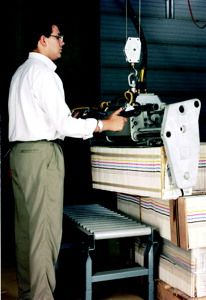

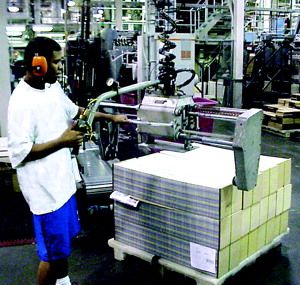

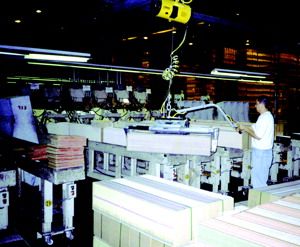

Signature Bundle Handler

SAFETY: Lifted bundles are safety interlocked during transfer to prevent accidental release of the load.

VERSATILITY: Side, end, or swivel handle controls are standard. Power rotation and self-leveling packages are also available upon request.

• Standard paddles for end boards up to 12 x 12 in. (305 x 305 mm). Extended paddle configurations are also available.
• Positive secure gripping and pickup reduces bundle damage and improves quality.

<table>

<thead>

<tr>

<th>ModelName</th>

<th>Stroke (in.)</th>

<th>Stroke (mm)</th>

<th>Bundle Length mm</th>

<th>Bundle Length in</th>

<th>Body Type</th>

<th>Control Handle</th>

</tr>

</thead>

<tbody>

<tr>

<td>SBH1-1-1</td>

<td>10</td>

<td>254</td>

<td>610-813</td>

<td>24-32</td>

<td>Single cylinder</td>

<td>Single side control</td>

</tr>

<tr>

<td>SBH1-1-2</td>

<td>10</td>

<td>254</td>

<td>813-1016</td>

<td>32-40</td>

<td>Single cylinder</td>

<td>Single side control</td>

</tr>

<tr>

<td>SBH1-1-3</td>

<td>10</td>

<td>254</td>

<td>1016-1219</td>

<td>40-48</td>

<td>Single cylinder</td>

<td>Single side control</td>

</tr>

<tr>

<td>SBH1-2-1</td>

<td>10</td>

<td>254</td>

<td>610-813</td>

<td>24-32</td>

<td>Single cylinder</td>

<td>Dual side control</td>

</tr>

<tr>

<td>SBH1-2-2</td>

<td>10</td>

<td>254</td>

<td>813-1016</td>

<td>32-40</td>

<td>Single cylinder</td>

<td>Dual side control</td>

</tr>

<tr>

<td>SBH1-2-3</td>

<td>10</td>

<td>254</td>

<td>1016-1219</td>

<td>40-48</td>

<td>Single cylinder</td>

<td>Dual side control</td>

</tr>

<tr>

<td>SBH1-3-1</td>

<td>10</td>

<td>254</td>

<td>610-813</td>

<td>24-32</td>

<td>Single cylinder</td>

<td>End control</td>

</tr>

<tr>

<td>SBH1-3-2</td>

<td>10</td>

<td>254</td>

<td>813-1016</td>

<td>32-40</td>

<td>Single cylinder</td>

<td>End control</td>

</tr>

<tr>

<td>SBH1-3-3</td>

<td>10</td>

<td>254</td>

<td>1016-1219</td>

<td>40-48</td>

<td>Single cylinder</td>

<td>End control</td>

</tr>

<tr>

<td>SBH1-4-1</td>

<td>10</td>

<td>254</td>

<td>610-813</td>

<td>24-32</td>

<td>Single cylinder</td>

<td>Side and end control</td>

</tr>

<tr>

<td>SBH1-4-2</td>

<td>10</td>

<td>254</td>

<td>813-1016</td>

<td>32-40</td>

<td>Single cylinder</td>

<td>Side and end control</td>

</tr>

<tr>

<td>SBH1-4-3</td>

<td>10</td>

<td>254</td>

<td>1016-1219</td>

<td>40-48</td>

<td>Single cylinder</td>

<td>Side and end control</td>

</tr>

<tr>

<td>SBH1-5-1</td>

<td>10</td>

<td>254</td>

<td>610-813</td>

<td>24-32</td>

<td>Single cylinder</td>

<td>Top swivel handle control</td>

</tr>

<tr>

<td>SBH1-5-2</td>

<td>10</td>

<td>254</td>

<td>813-1016</td>

<td>32-40</td>

<td>Single cylinder</td>

<td>Top swivel handle control</td>

</tr>

<tr>

<td>SBH1-5-3</td>

<td>10</td>

<td>254</td>

<td>1016-1219</td>

<td>40-48</td>

<td>Single cylinder</td>

<td>Top swivel handle control</td>

</tr>

</tbody>

</table>
