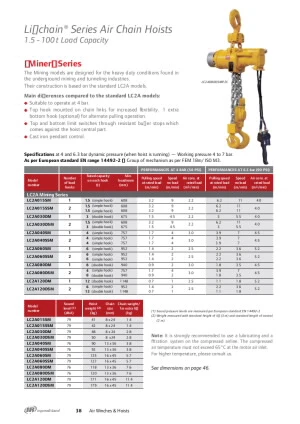

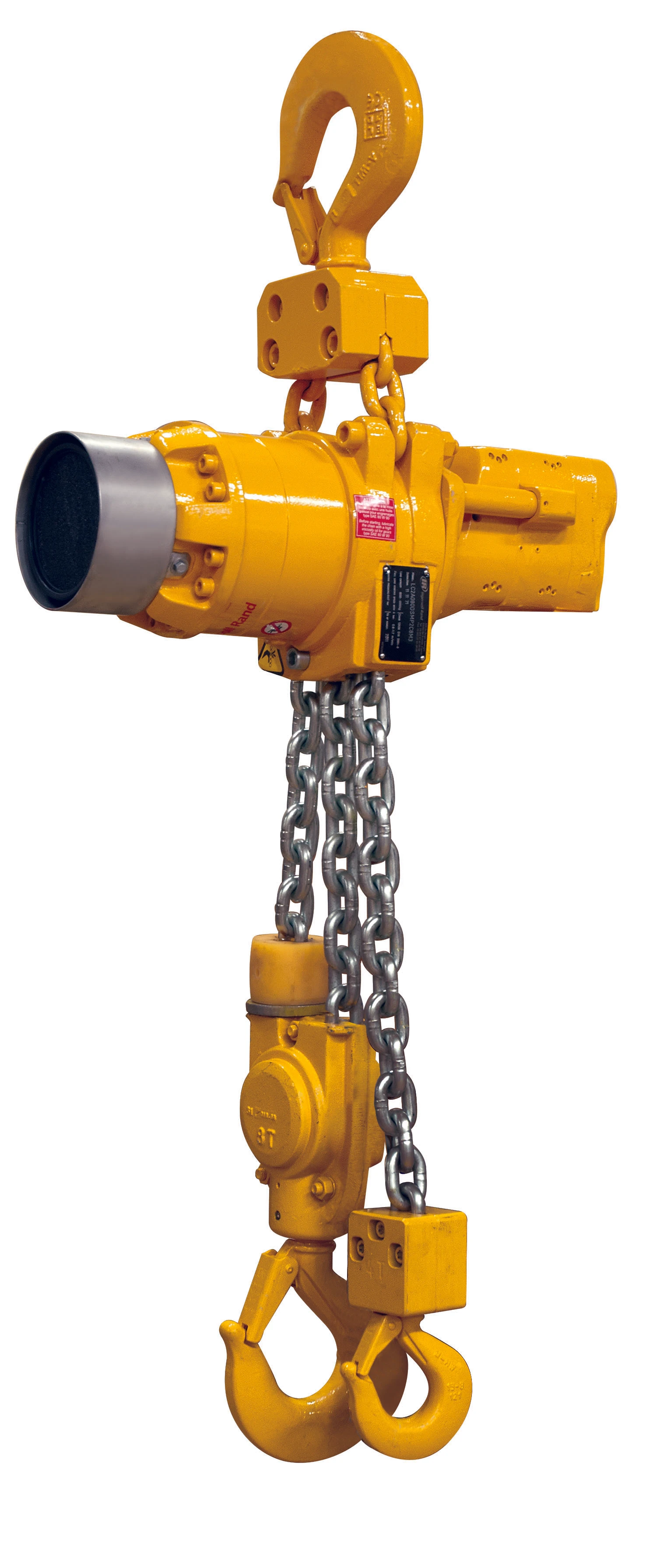

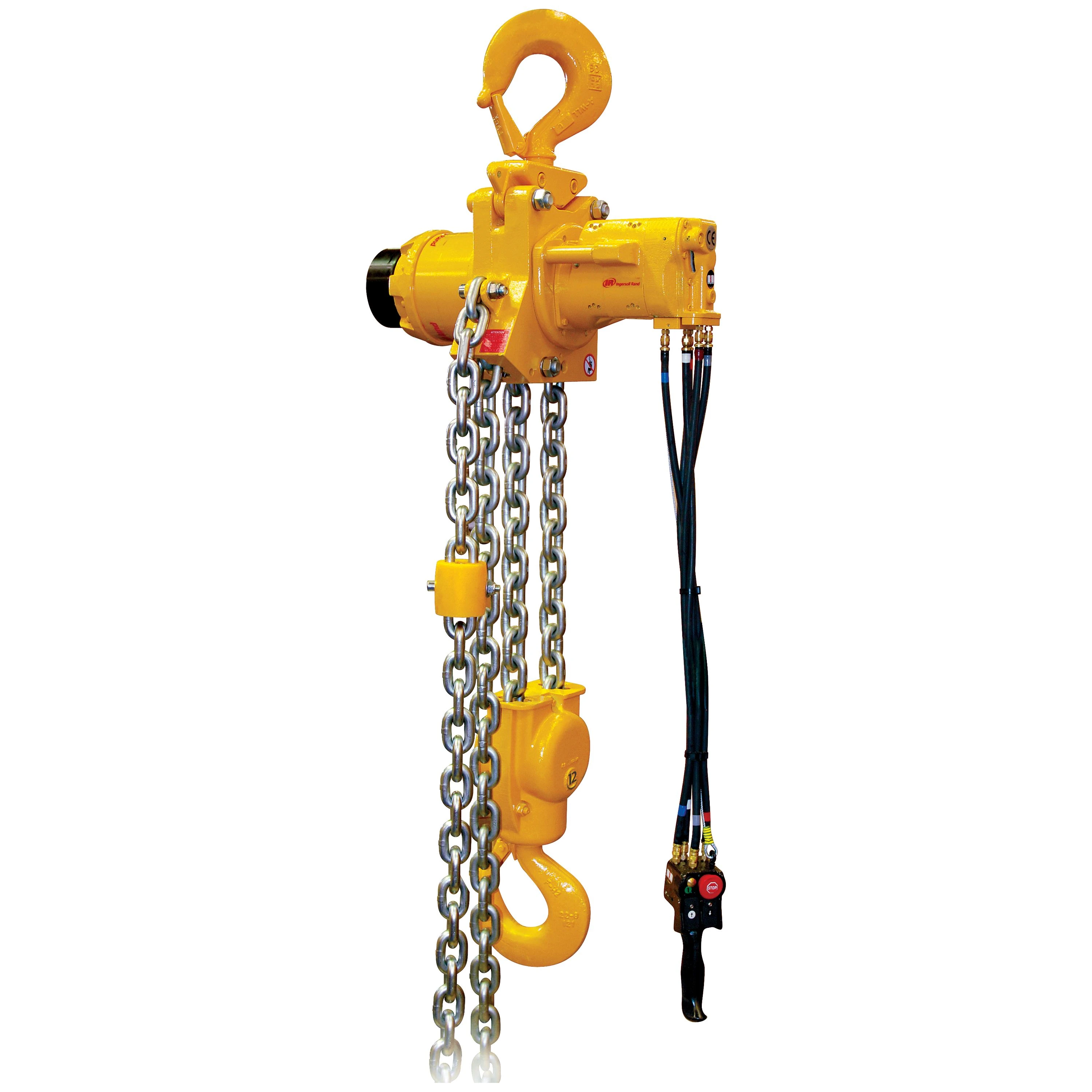

Liftchain® Miner Series Air Chain Hoists

Durability

• Rugged, compact and lightweight all steel construction adaptable for any environment
• Cast iron pendant control
• Grade 80 calibrated corrosion-resistant load chain
• Automatic multi disc brake fully enclosed for better corrosion resistance

Safety

• Suitable for explosive environments per ATEX Zone 2 standard (ATEX Zone 1 package (optional)
• Overload protection device ensures safe operation
• Top and bottom limit switches through resistant buffer stops that comes against the hoist central part

Performance

• Suitable to operate at 60 psia (4 bar)
• Top hook mounted on chain links for increased flexibility; extra optional bottom hook for pulling
• Virtually maintenance-free gear-type air motor with minimal moving parts
• Variable speed for precision spotting control

<table>

<thead>

<tr>

<th>Model</th>

<th>LC2A015SM</th>

<th>LC2A015SSM</th>

<th>-</th>

<th>LC2A030DM</th>

<th>LC2A030DSM</th>

<th>-</th>

<th>LC2A040SM</th>

<th>LC2A040SSM</th>

<th>-</th>

<th>LC2A060SM</th>

<th>LC2A060SSM</th>

<th>-</th>

<th>LC2A080DM</th>

<th>LC2A080DSM</th>

<th>-</th>

<th>LC2A120DM</th>

<th>LC2A120DSM</th>

<th>-</th>

</tr>

</thead>

<tbody>

<tr>

<td>Number of Load Hooks</td>

<td>1</td>

<td>2</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>2</td>

</tr>

<tr>

<td>Rated Capacity on Each Hook (t)</td>

<td>1.5 (simple hook)</td>

<td>1.5 (simple hook)</td>

<td>1.5 (simple hook)</td>

<td>3 (double hook)</td>

<td>1.5 (simple hook)</td>

<td>3 (double hook)</td>

<td>4 (simple hook)</td>

<td>4 (simple hook)</td>

<td>4 (simple hook)</td>

<td>6 (simple hook)</td>

<td>6 (simple hook)</td>

<td>6 (simple hook)</td>

<td>8 (double hook)</td>

<td>4 (simple hook)</td>

<td>8 (double hook)</td>

<td>12 (double hook)</td>

<td>6 (simple hook)</td>

<td>12 (double hook)</td>

</tr>

<tr>

<td>Min. Headroom (mm)</td>

<td>608</td>

<td>608</td>

<td>608</td>

<td>675</td>

<td>608</td>

<td>675</td>

<td>757</td>

<td>757</td>

<td>757</td>

<td>952</td>

<td>952</td>

<td>952</td>

<td>940</td>

<td>757</td>

<td>940</td>

<td>1148</td>

<td>952</td>

<td>1148</td>

</tr>

<tr>

<td>Performances at 4 Bar (58 psi) Pulling Speed at Rated Load (m/min)</td>

<td>3.2</td>

<td>3.2</td>

<td>3.2</td>

<td>1.5</td>

<td>3.2</td>

<td>1.5</td>

<td>1.7</td>

<td>1.7</td>

<td>1.7</td>

<td>1.4</td>

<td>1.4</td>

<td>1.4</td>

<td>0.9</td>

<td>1.7</td>

<td>0.9</td>

<td>0.7</td>

<td>1.4</td>

<td>0.7</td>

</tr>

<tr>

<td>Performances at 4 Bar (58 psi) Speed No Load (m/min)</td>

<td>9</td>

<td>9</td>

<td>9</td>

<td>4.5</td>

<td>9</td>

<td>4.5</td>

<td>4</td>

<td>4</td>

<td>4</td>

<td>2</td>

<td>2</td>

<td>2</td>

<td>2</td>

<td>4</td>

<td>2</td>

<td>1</td>

<td>2</td>

<td>1</td>

</tr>

<tr>

<td>Performances at 4 Bar (58 psi) Air Cons. At Rated Load (m3/min)</td>

<td>2.2</td>

<td>2.2</td>

<td>2.2</td>

<td>2.2</td>

<td>2.2</td>

<td>2.2</td>

<td>3</td>

<td>3</td>

<td>3</td>

<td>2.5</td>

<td>2.5</td>

<td>2.5</td>

<td>3</td>

<td>3</td>

<td>3</td>

<td>2.5</td>

<td>2.5</td>

<td>2.5</td>

</tr>

<tr>

<td>Performances at 6.3 Bar (90 psi) Pulling Speed at Rated Load (m/min)</td>

<td>6.2</td>

<td>6.2</td>

<td>6.2</td>

<td>3</td>

<td>6.2</td>

<td>3</td>

<td>3.9</td>

<td>3.9</td>

<td>3.9</td>

<td>2.2</td>

<td>2.2</td>

<td>2.2</td>

<td>1.8</td>

<td>3.9</td>

<td>1.8</td>

<td>1.1</td>

<td>2.2</td>

<td>1.1</td>

</tr>

<tr>

<td>Performances at 6.3 Bar (90 psi) Speed No Load (m/min)</td>

<td>11</td>

<td>11</td>

<td>11</td>

<td>5.5</td>

<td>11</td>

<td>5.5</td>

<td>7</td>

<td>7</td>

<td>7</td>

<td>3.6</td>

<td>3.6</td>

<td>3.6</td>

<td>3.5</td>

<td>7</td>

<td>3.5</td>

<td>1.8</td>

<td>3.6</td>

<td>1.8</td>

</tr>

<tr>

<td>Performances at 6.3 Bar (90 psi) Air Cons. At Rated Load (m3/min)</td>

<td>4</td>

<td>4</td>

<td>4</td>

<td>4</td>

<td>4</td>

<td>4</td>

<td>4.5</td>

<td>4.5</td>

<td>4.5</td>

<td>5.2</td>

<td>5.2</td>

<td>5.2</td>

<td>4.5</td>

<td>4.5</td>

<td>4.5</td>

<td>5.2</td>

<td>5.2</td>

<td>5.2</td>

</tr>

<tr>

<td>Sound Level (1) (dbA)</td>

<td>79</td>

<td>79</td>

<td>79</td>

<td>79</td>

<td>79</td>

<td>79</td>

<td>76</td>

<td>76</td>

<td>76</td>

<td>79</td>

<td>79</td>

<td>79</td>

<td>76</td>

<td>76</td>

<td>76</td>

<td>79</td>

<td>79</td>

<td>79</td>

</tr>

<tr>

<td>Hoist Weight (2) (kg)</td>

<td>41</td>

<td>42</td>

<td>42</td>

<td>48</td>

<td>50</td>

<td>50</td>

<td>90</td>

<td>92</td>

<td>92</td>

<td>125</td>

<td>127</td>

<td>127</td>

<td>118</td>

<td>120</td>

<td>120</td>

<td>171</td>

<td>179</td>

<td>179</td>

</tr>

<tr>

<td>Chain Size (mm)</td>

<td>8x24</td>

<td>8x24</td>

<td>8x24</td>

<td>8x24</td>

<td>8x24</td>

<td>8x24</td>

<td>13x36</td>

<td>13x36</td>

<td>13x36</td>

<td>16x45</td>

<td>16x45</td>

<td>16x45</td>

<td>13x36</td>

<td>13x36</td>

<td>13x36</td>

<td>16x45</td>

<td>16x45</td>

<td>16x45</td>

</tr>

<tr>

<td>Chain Weight/1 m Extra Lift (kg)</td>

<td>1.4</td>

<td>1.4</td>

<td>1.4</td>

<td>2.8</td>

<td>2.8</td>

<td>2.8</td>

<td>3.8</td>

<td>3.8</td>

<td>3.8</td>

<td>5.7</td>

<td>5.7</td>

<td>5.7</td>

<td>7.6</td>

<td>7.6</td>

<td>7.6</td>

<td>11.4</td>

<td>11.4</td>

<td>11.4</td>

</tr>

</tbody>

</table>
