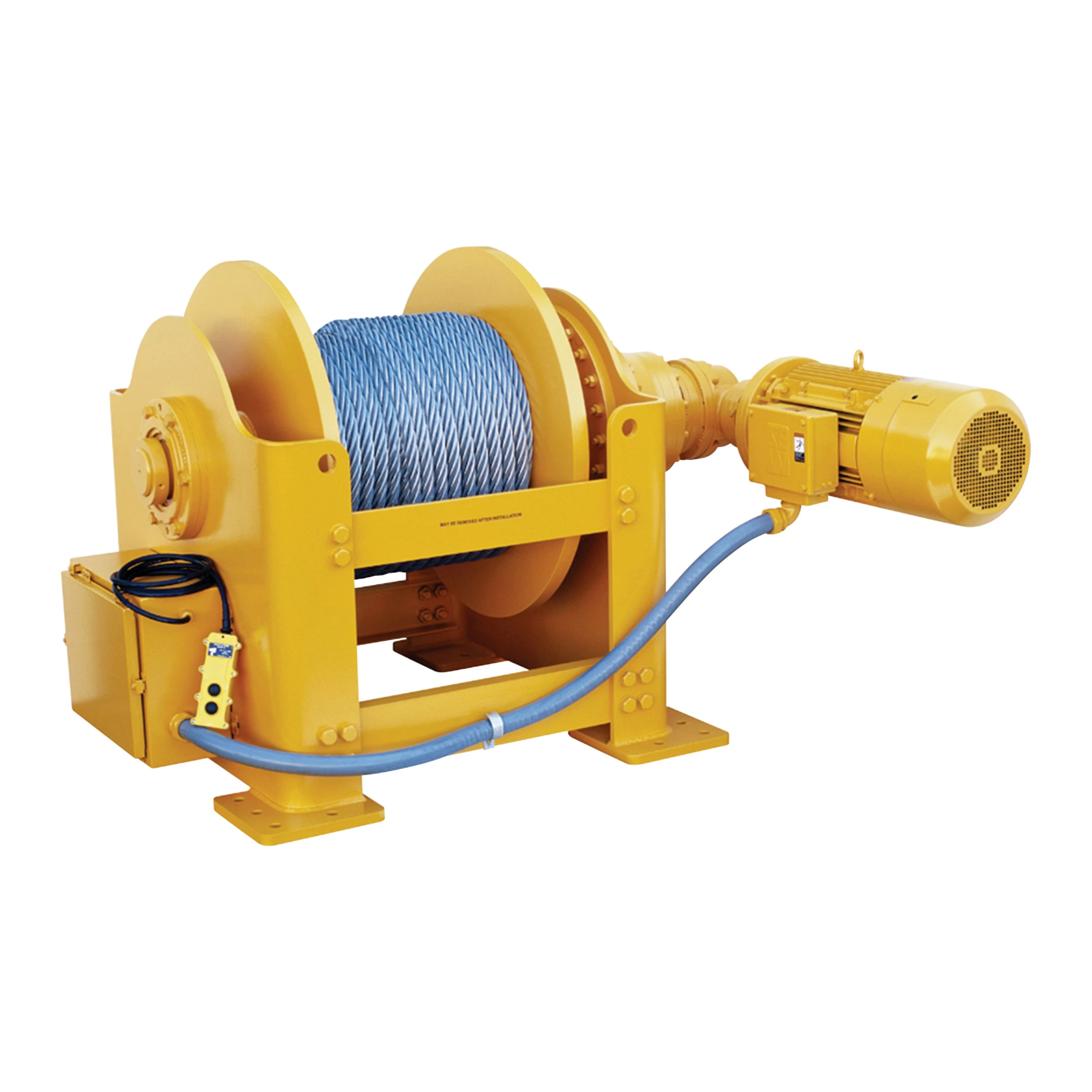

Fulcrum 电动绞车

耐用性好

• 全封闭行星齿轮箱可抵御环境污染物
• 预制钢框架可提供长的产品使用寿命
• 集成吊耳便于运输和安装

安全性好

• 5:1 的设计系数，实现了安全工作负载
• 自动盘式马达制动器实现完全控制
• 用于在断电时降低负载的手动制动释放手柄

性能高

• 高扭矩、连续工作的 TEFC NEMA B 级马达，可在高循环应用中连续工作
• 多种安装配置，包括甲板、墙壁或悬挂（倒置）安装
• 通用索锚设计可兼容多种钢索尺寸，并允许绳索从滚筒底部（下绕）或顶部（上绕）缠绕
• 在全球范围内提供 3 相电压选件

<table>

<thead>

<tr>

<th>Frame</th>

<th>3</th>

<th>3</th>

<th>3</th>

<th>4</th>

<th>4</th>

<th>4</th>

<th>5</th>

<th>5</th>

<th>5</th>

<th>5</th>

<th>6</th>

<th>6</th>

<th>7</th>

<th>7</th>

<th>7</th>

<th>7</th>

<th>8</th>

<th>8</th>

</tr>

</thead>

<tbody>

<tr>

<td>Pulling Model 15:1 D/d Ratio</td>

<td>EP5300-17-18</td>

<td>EP6700-20-17</td>

<td>-</td>

<td>EP8200-23-24</td>

<td>EP11700-13-27</td>

<td>-</td>

<td>EP15900-19-24</td>

<td>-</td>

<td>EP20600-19-24</td>

<td>-</td>

<td>EP26000-17-24</td>

<td>-</td>

<td>EP31900-20-24</td>

<td>-</td>

<td>EP38400-20-24</td>

<td>-</td>

<td>EP45600-18-30</td>

<td>-</td>

</tr>

<tr>

<td>Lifting Model 18:1 D/d Ratio</td>

<td>EL5300-17-18</td>

<td>-</td>

<td>EL6000-23-18</td>

<td>EP8200-23-24</td>

<td>-</td>

<td>EL9200-23-24</td>

<td>-</td>

<td>EL14100-22-24</td>

<td>-</td>

<td>EL16400-20-24</td>

<td>-</td>

<td>EL21300-21-24</td>

<td>-</td>

<td>EL27000-22-24</td>

<td>-</td>

<td>EL32600-19-24</td>

<td>-</td>

<td>EL42400-20-30</td>

</tr>

<tr>

<td>Std Drum Length in.</td>

<td>18</td>

<td>18</td>

<td>18</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>24</td>

<td>30</td>

<td>30</td>

</tr>

<tr>

<td>hp</td>

<td>3</td>

<td>5</td>

<td>5</td>

<td>7.5</td>

<td>5</td>

<td>7.5</td>

<td>10</td>

<td>10</td>

<td>15</td>

<td>15</td>

<td>20</td>

<td>20</td>

<td>20</td>

<td>20</td>

<td>25</td>

<td>20</td>

<td>30</td>

<td>30</td>

</tr>

<tr>

<td>Line Pull, 1st Layer (lbs)</td>

<td>5300</td>

<td>6700</td>

<td>6000</td>

<td>8200</td>

<td>11700</td>

<td>9200</td>

<td>15900</td>

<td>14100</td>

<td>20600</td>

<td>16400</td>

<td>26000</td>

<td>21300</td>

<td>31900</td>

<td>27000</td>

<td>38400</td>

<td>32600</td>

<td>45600</td>

<td>42400</td>

</tr>

<tr>

<td>Line Pull, Mid Layer (lbs)</td>

<td>4000</td>

<td>4900</td>

<td>4900</td>

<td>6200</td>

<td>8500</td>

<td>7700</td>

<td>11900</td>

<td>11700</td>

<td>16400</td>

<td>14900</td>

<td>18900</td>

<td>17700</td>

<td>26000</td>

<td>22700</td>

<td>30800</td>

<td>29500</td>

<td>37200</td>

<td>35100</td>

</tr>

<tr>

<td>Line Pull, Full Layer (lbs)</td>

<td>3200</td>

<td>4200</td>

<td>4200</td>

<td>5000</td>

<td>7200</td>

<td>7100</td>

<td>10200</td>

<td>10100</td>

<td>13600</td>

<td>13600</td>

<td>16000</td>

<td>16300</td>

<td>22000</td>

<td>21000</td>

<td>25700</td>

<td>27000</td>

<td>31500</td>

<td>29900</td>

</tr>

<tr>

<td>Std Line Speed, 1st Layer (fpm)</td>

<td>17</td>

<td>20</td>

<td>23</td>

<td>23</td>

<td>13</td>

<td>23</td>

<td>19</td>

<td>22</td>

<td>19</td>

<td>20</td>

<td>17</td>

<td>21</td>

<td>20</td>

<td>22</td>

<td>20</td>

<td>19</td>

<td>18</td>

<td>20</td>

</tr>

<tr>

<td>Std Line Speed, Mid Layer (fpm)</td>

<td>23</td>

<td>28</td>

<td>28</td>

<td>30</td>

<td>17</td>

<td>28</td>

<td>26</td>

<td>26</td>

<td>24</td>

<td>22</td>

<td>23</td>

<td>25</td>

<td>24</td>

<td>28</td>

<td>25</td>

<td>21</td>

<td>22</td>

<td>24</td>

</tr>

<tr>

<td>Std Line Speed, Full Layer (fpm)</td>

<td>28</td>

<td>32</td>

<td>32</td>

<td>37</td>

<td>21</td>

<td>30</td>

<td>30</td>

<td>30</td>

<td>29</td>

<td>24</td>

<td>28</td>

<td>27</td>

<td>28</td>

<td>30</td>

<td>30</td>

<td>22</td>

<td>26</td>

<td>28</td>

</tr>

<tr>

<td>Wire Rope Size in.</td>

<td>0.5</td>

<td>0.5625</td>

<td>0.5625</td>

<td>0.625</td>

<td>0.75</td>

<td>0.75</td>

<td>0.875</td>

<td>0.875</td>

<td>1</td>

<td>1</td>

<td>1.125</td>

<td>1.125</td>

<td>1.25</td>

<td>1.25</td>

<td>1.375</td>

<td>1.375</td>

<td>1.5</td>

<td>1.5</td>

</tr>

<tr>

<td>Drum Capacity, 1st Layer (ft)</td>

<td>0.5</td>

<td>0.5625</td>

<td>0.5625</td>

<td>0.625</td>

<td>0.75</td>

<td>0.75</td>

<td>0.875</td>

<td>0.875</td>

<td>1</td>

<td>1</td>

<td>1.125</td>

<td>1.125</td>

<td>1.25</td>

<td>1.25</td>

<td>1.375</td>

<td>1.375</td>

<td>1.5</td>

<td>1.5</td>

</tr>

<tr>

<td>Drum Capacity, Mid Layer (ft)</td>

<td>387</td>

<td>351</td>

<td>277</td>

<td>515</td>

<td>443</td>

<td>394</td>

<td>481</td>

<td>385</td>

<td>305</td>

<td>240</td>

<td>433</td>

<td>371</td>

<td>338</td>

<td>395</td>

<td>310</td>

<td>230</td>

<td>423</td>

<td>453</td>

</tr>

<tr>

<td>Drum Capacity, ˂2 Layers(1) (ft)</td>

<td>768</td>

<td>578</td>

<td>506</td>

<td>1024</td>

<td>733</td>

<td>548</td>

<td>790</td>

<td>699</td>

<td>566</td>

<td>378</td>

<td>718</td>

<td>518</td>

<td>619</td>

<td>549</td>

<td>573</td>

<td>362</td>

<td>776</td>

<td>826</td>

</tr>

<tr>

<td>Drum Capacity, Full Layer(2) (ft)</td>

<td>1066</td>

<td>840</td>

<td>768</td>

<td>1421</td>

<td>1070</td>

<td>892</td>

<td>1145</td>

<td>1059</td>

<td>872</td>

<td>686</td>

<td>1048</td>

<td>1026</td>

<td>1127</td>

<td>892</td>

<td>881</td>

<td>659</td>

<td>1186</td>

<td>1255</td>

</tr>

</tbody>

</table>
