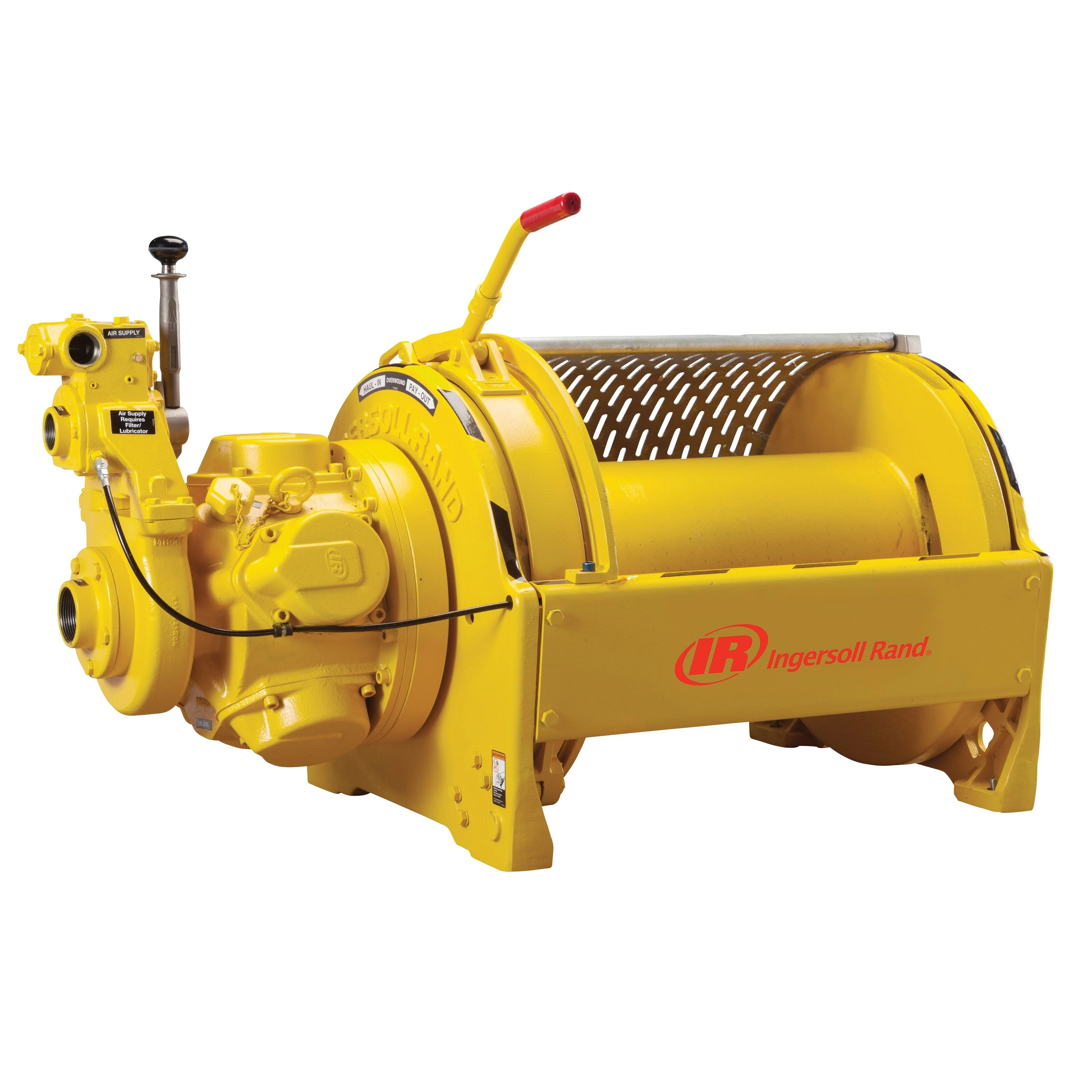

第三代气动绞车

耐用性好

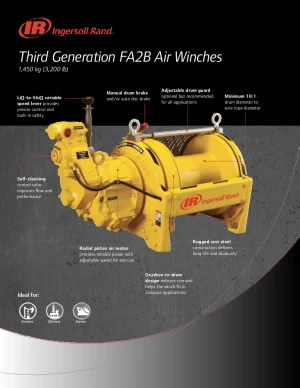

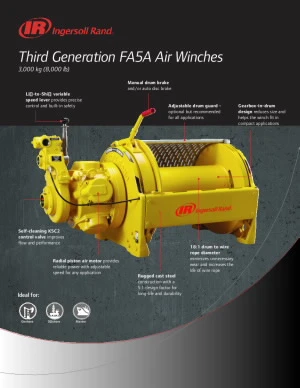

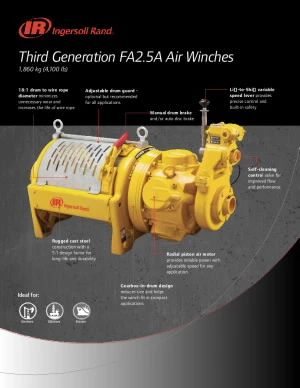

• 坚固的铸钢结构，5:1 设计系数，使用寿命长
• 18:1 的滚筒直径与钢索直径最小比例，增加了钢索使用寿命

安全性好

• 提升换档变速杆提供精确控制和内在安全性
• 滚筒内齿轮箱设计减小了尺寸，使绞车适用于紧凑型应用

性能高

• 强大的径向活塞气动马达提供了可靠的动力和可调节的速度，适合任何使用场景
• 自清洁控制阀提高了流量和性能
• 标配鼓式制动器或选配自动盘式制动器提供了出色的制动力

<table>

<thead>

<tr>

<th>Model</th>

<th>FA2B-7**</th>

<th>FA2B-13**</th>

<th>FA2B-20**</th>

<th>FA2B-24**</th>

<th>FA2.5A-7**</th>

<th>FA2.5A-13**</th>

<th>FA2.5A-20**</th>

<th>FA2.5A-24**</th>

<th>FA5A-12**</th>

<th>FA5A-24**</th>

</tr>

</thead>

<tbody>

<tr>

<td>Line Pull Capacity First Layer kg (lb)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>5,890 (13,000)</td>

<td>5,890 (13,000)</td>

</tr>

<tr>

<td>Line Pull Capacity Mid Drum kg (lb)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>4,540 (10,000)</td>

<td>4,540 (10,000)</td>

</tr>

<tr>

<td>Line Pull Capacity Top Layer kg (lb)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>3,600 (8,000)</td>

<td>3,600 (8,000)</td>

</tr>

<tr>

<td>Lifting Speed at Top Layer(1) m/min (fpm)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>13 (43)</td>

<td>13 (43)</td>

</tr>

<tr>

<td>Air Consumption with Rated Load m3/min (ft3/min)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

</tr>

<tr>

<td>Air Volume Needed to Move Rated Load at Top Layer 3 m (10ft)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>4.6 (162.8)</td>

<td>4.6 (162.8)</td>

</tr>

<tr>

<td>Sound Level as per EN 14492-1 dB(A)</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>89</td>

<td>89</td>

</tr>

<tr>

<td>Drum Capacity Rope Length m (ft)</td>

<td>108 (356)</td>

<td>217 (712)</td>

<td>325 (1,068)</td>

<td>392 (1,287)</td>

<td>63 (206)</td>

<td>127 (416)</td>

<td>191 (625)</td>

<td>230 (754)</td>

<td>177 (581)</td>

<td>366 (1,200)</td>

</tr>

<tr>

<td>Drum Capacity Rope Diameter mm (in)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>20 (3/4)</td>

<td>20 (3/4)</td>

</tr>

<tr>

<td>Net Weight kg (lb)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td></td>

<td></td>

</tr>

</tbody>

</table>
