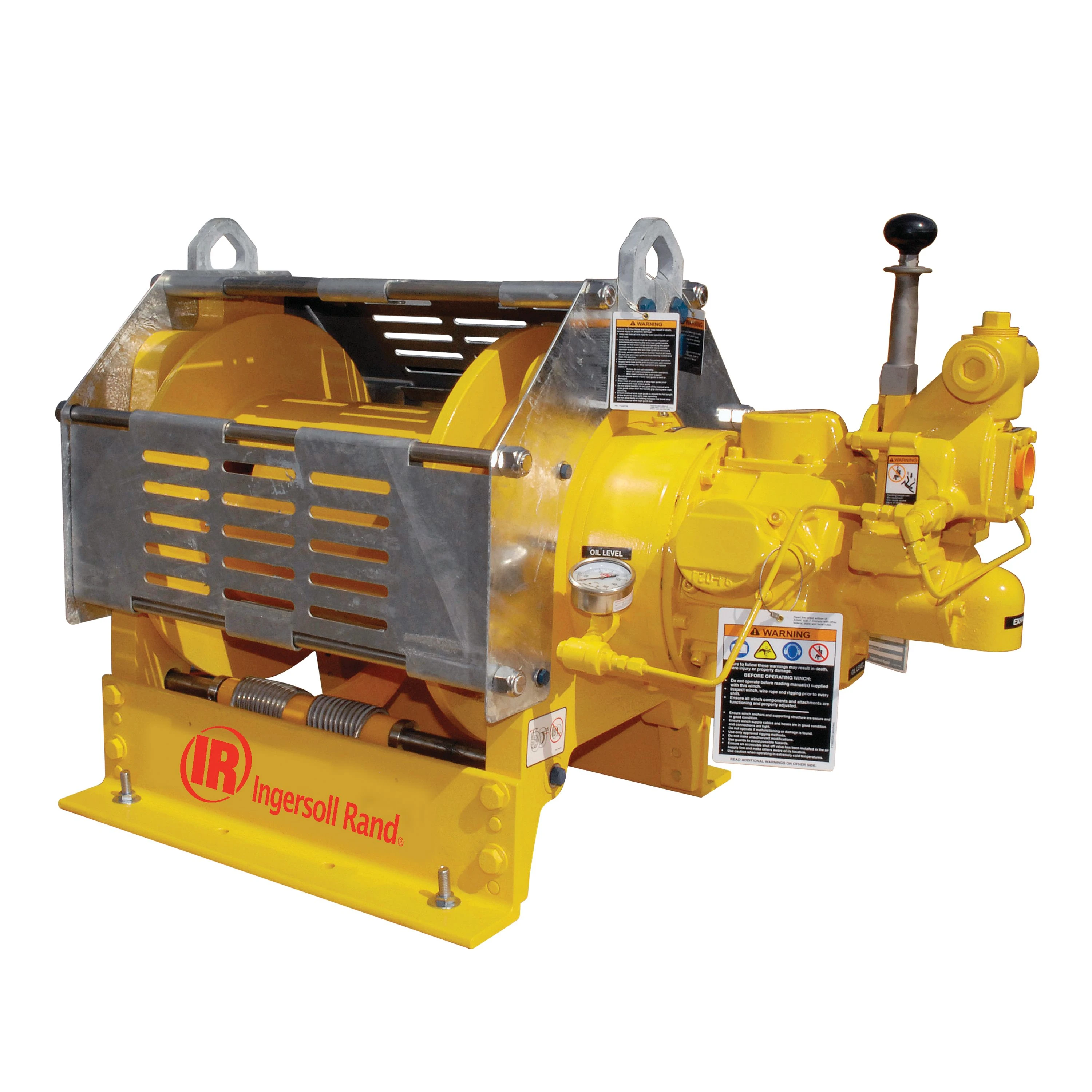

Infinity 两用气动绞车

耐用性好

• 坚固的全钢结构和装配式钢框架，使用寿命更长
• 强大的径向活塞气动马达提供了可靠的动力和可调节的速度
• 自清洁 KSC2 控制阀提高了流量和性能

安全性好

• 可调节的滚筒防护罩可以为绞车操作员提供保护
• 提升换档变速杆提供精确控制和内在安全性
• ATEX Zone 1 和 Zone 2 合规标准

性能高

• 内置吊耳设计，用于提升绞车和钢索的重量
• 18:1 的滚筒直径与钢索直径最小比例，可减少钢索磨损
• 滚筒内集成齿轮箱设计，适用于紧凑型应用

<table>

<thead>

<tr>

<th>Model</th>

<th>Rated Capacity at Top Layer kg (lb)</th>

<th>Lifting Speed at Top Layer m/min (fpm)</th>

<th>Air Consumption with Rated Load m3/min (ft3)</th>

<th>Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)</th>

<th>Sound Level as per EN 14492-1 dB(A)</th>

<th>Drum Capacity(1) Length m (ft)</th>

<th>Drum Capacity(1) Rope Diameter mm (in)</th>

<th>Net Weight kg (lb)</th>

</tr>

</thead>

<tbody>

<tr>

<td>PERSONNEL LIFTING</td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

</tr>

<tr>

<td>FA2i-MR24MK1G</td>

<td>1,445 (3,180)</td>

<td>23 (75)</td>

<td>8 (280)</td>

<td>1.0 (37.3)</td>

<td>87</td>

<td>430 (1,435)</td>

<td>13 (1/2)</td>

<td>420 (925)</td>

</tr>

<tr>

<td>FA2.5i-MR24MK1G</td>

<td>1,445 (3,180)</td>

<td>53 (173)</td>

<td>20 (700)</td>

<td>1.1 (40.5)</td>

<td>97</td>

<td>430 (1,435)</td>

<td>13 (1/2)</td>

<td>574 (1,265)</td>

</tr>

<tr>

<td>FA5i-MR24MK1G</td>

<td>3,123 (6,870)</td>

<td>23 (75)</td>

<td>20 (700)</td>

<td>2.6 (93.3)</td>

<td>97</td>

<td>410 (1,346)</td>

<td>20 (3/4)</td>

<td>907 (2,000)</td>

</tr>

<tr>

<td>UTILITY LIFTING</td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

</tr>

<tr>

<td>FA2i-MR24MK1G</td>

<td>2,000 (4,400)</td>

<td>16 (51)</td>

<td>8 (280)</td>

<td>1.5 (54.9)</td>

<td>87</td>

<td>430 (1,435)</td>

<td>13 (1/2)</td>

<td>420 (925)</td>

</tr>

<tr>

<td>FA2.5i-MR24MK1G</td>

<td>2,273 (5,000)</td>

<td>40 (132)</td>

<td>20 (700)</td>

<td>1.5 (53.0)</td>

<td>97</td>

<td>430 (1,435)</td>

<td>13 (1/2)</td>

<td>574 (1,265)</td>

</tr>

<tr>

<td>FA5i-MR24MK1G</td>

<td>5,000 (11,000)</td>

<td>16 (54)</td>

<td>20 (700)</td>

<td>3.8 (129.6)</td>

<td>97</td>

<td>410 (1,346)</td>

<td>20 (3/4)</td>

<td>907 (2,000)</td>

</tr>

</tbody>

</table>

Personnel Lifting Ratings at 8:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

Utility Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

(1) Wire rope is tightly wound with no freeboard.
