耐用性好
- 不锈钢外壳可保护活动部件免受损坏
- 船用级油漆实现了出色的耐腐蚀能力
- 10:1 的设计系数，延长了使用寿命
安全性好
- 自动多盘式制动器和自动鼓式制动器提供了两个独立制动系统的安全性
- 防松绳系统在绳索松弛的情况下将自动停止绞车放线
- 内置限位开关可防止升高量或降低量超过设定的限制
性能高
- 螺旋凹槽滚筒有助于钢索缠绕
- 压辊有助于钢索缠绕
- 旨在满足法规，包括 CE、ATEX 和 DNV 型式认证

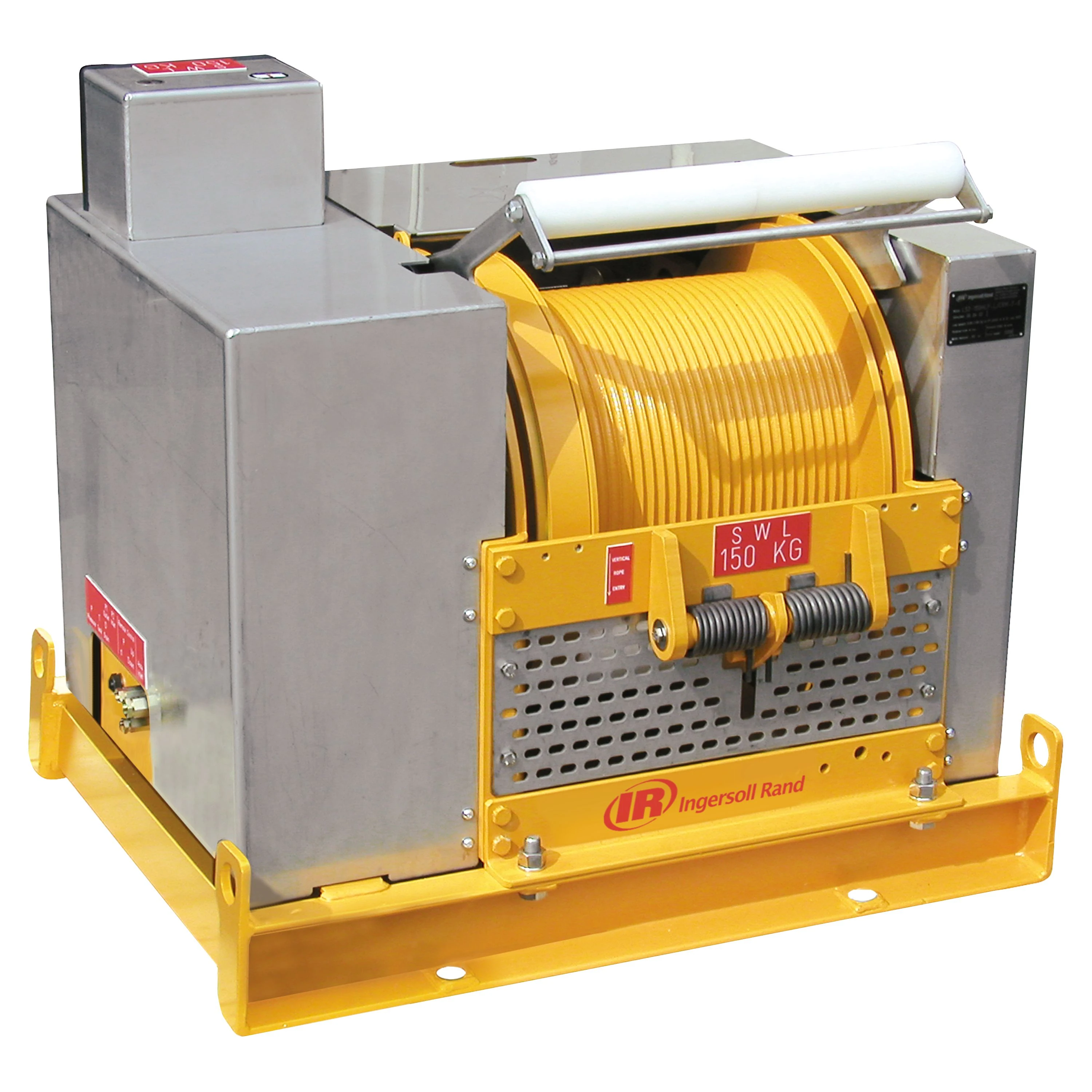

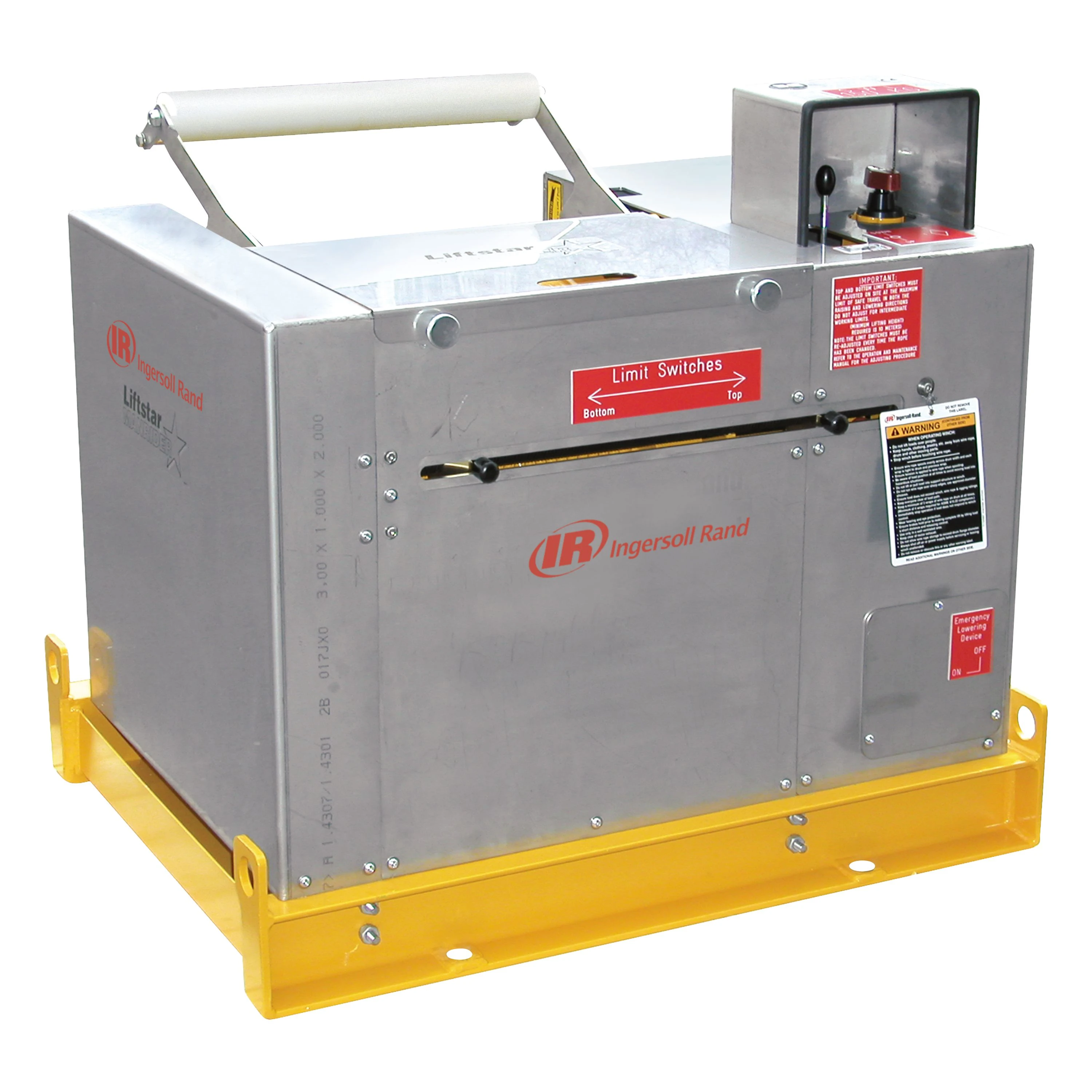

Model | LS2-150HLP |
Line Pull Capacity First Layer kg (lb) | 150 (330) |
Line Pull Capacity Mid Drum kg (lb) 150 (330) | 150 (330) |
Line Pull Capacity Top Layer kg (lb) | 150 (330) |
Line Speed First Layer m/min (fpm) | 28 (92) |
Line Speed Mid Drum m/min (fpm) | 29 (96) |
Line Speed Top Layer m/min (fpm) | 30 (98) |
Lifting Speed at Top Layer m/mm (f/fpm) | 30 (98) |
Max Flow with Rated Load I/min (gal/min) | 10 (2.64) |
Operating Pressure bar (psi) | 105 (1,523) |
Net Weight kg (lb) | 380 (838) |
Drum Capacity Min. Rope Breaking Force kN (lbs) | 14.7 (3,300) |
Drum Capacity Recommended Rope Diameter mm (in) | 10 (3/8) |
Drum Capacity per Layer 1, in (ft) | 24 (78) |
Drum Capacity per Layer 2, in (ft) | 54 (177) |
Drum Capacity per Layer 3, in (ft) | 85 (278) |
Drum Capacity per Layer 4, in (ft) | 118 (387) |
Drum Capacity per Layer 5, in (ft) | 154 (505) |
Drum Capacity Max. Rope Storage Capacity in (ft) | 154 (505) |
General Performance based on a 10:1 design factor
