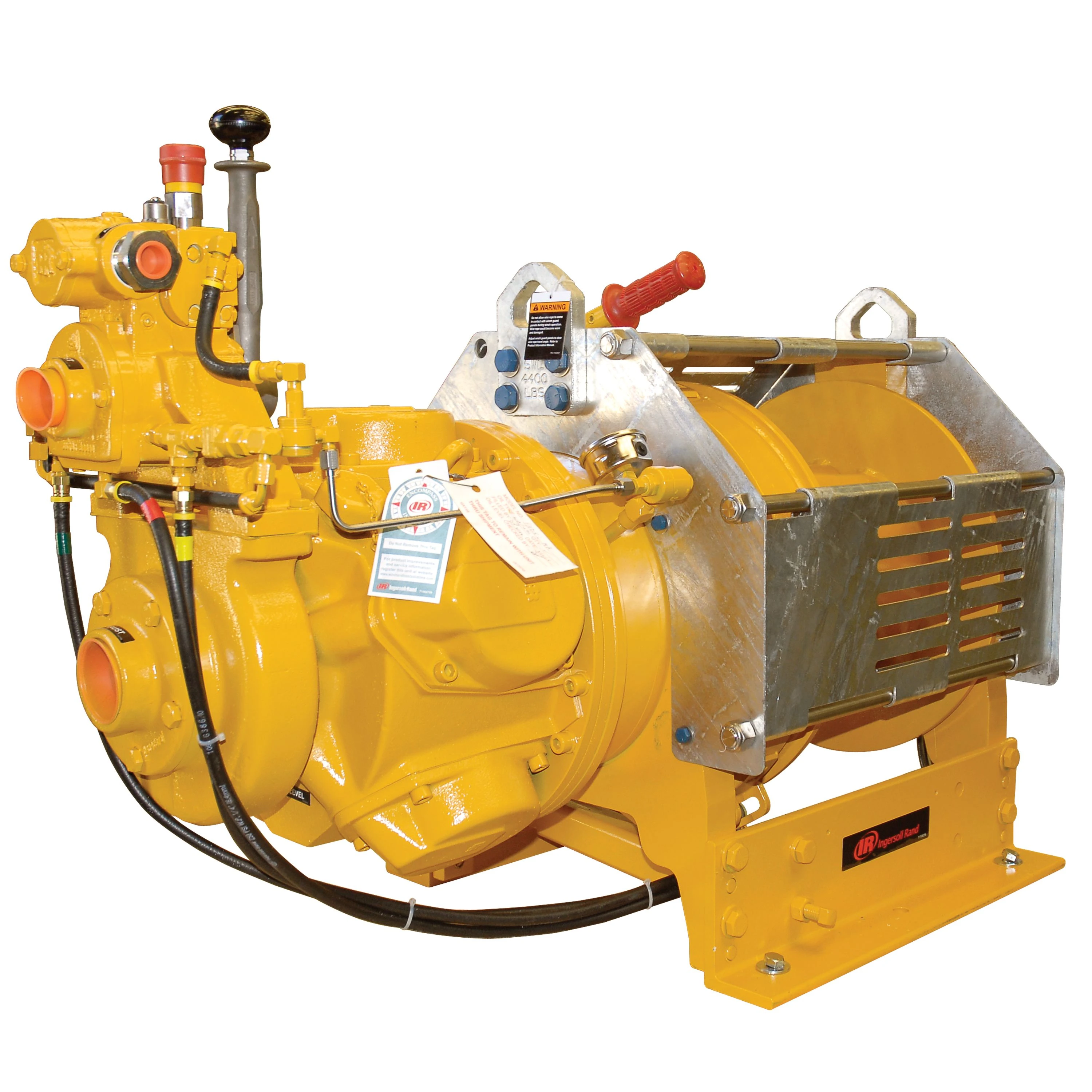

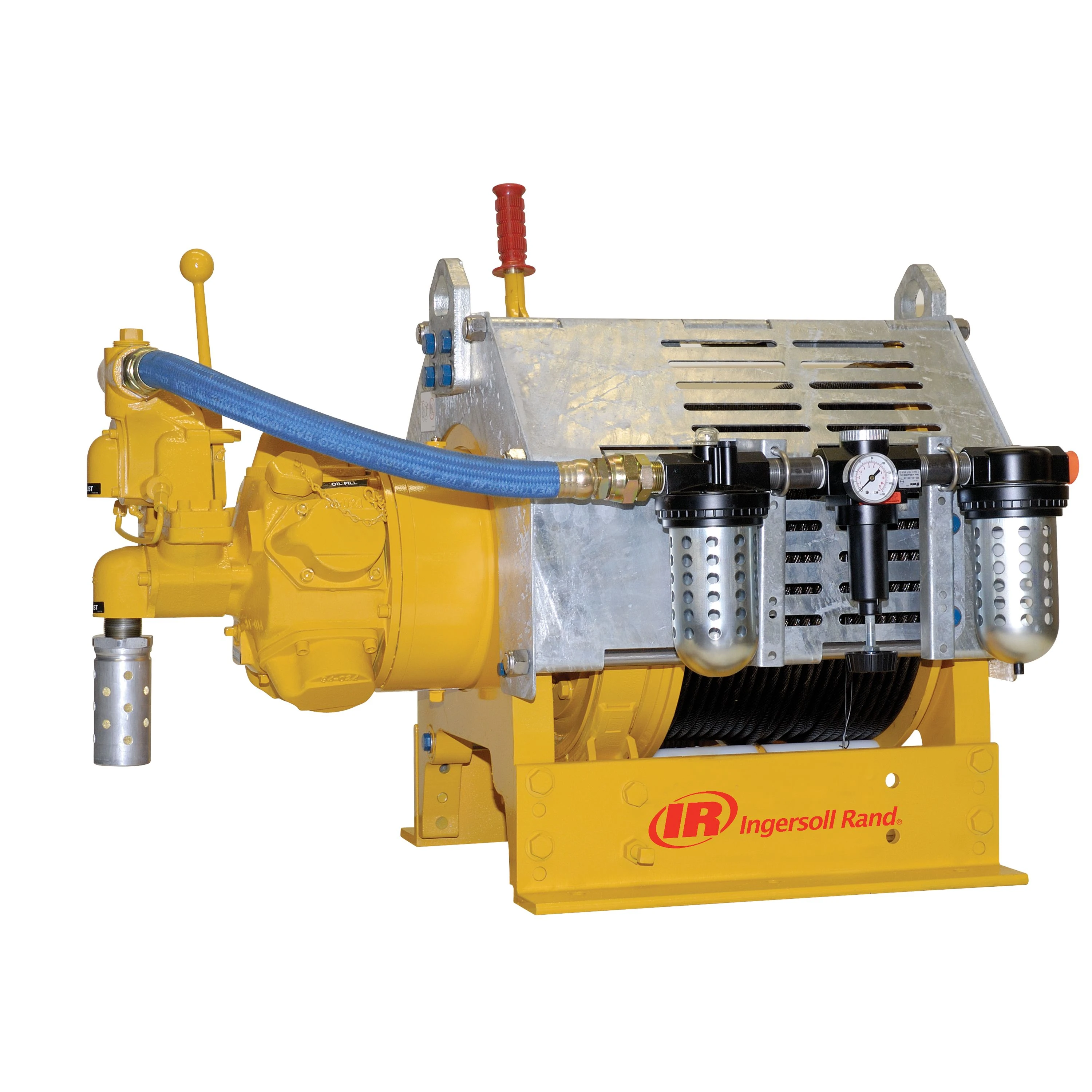

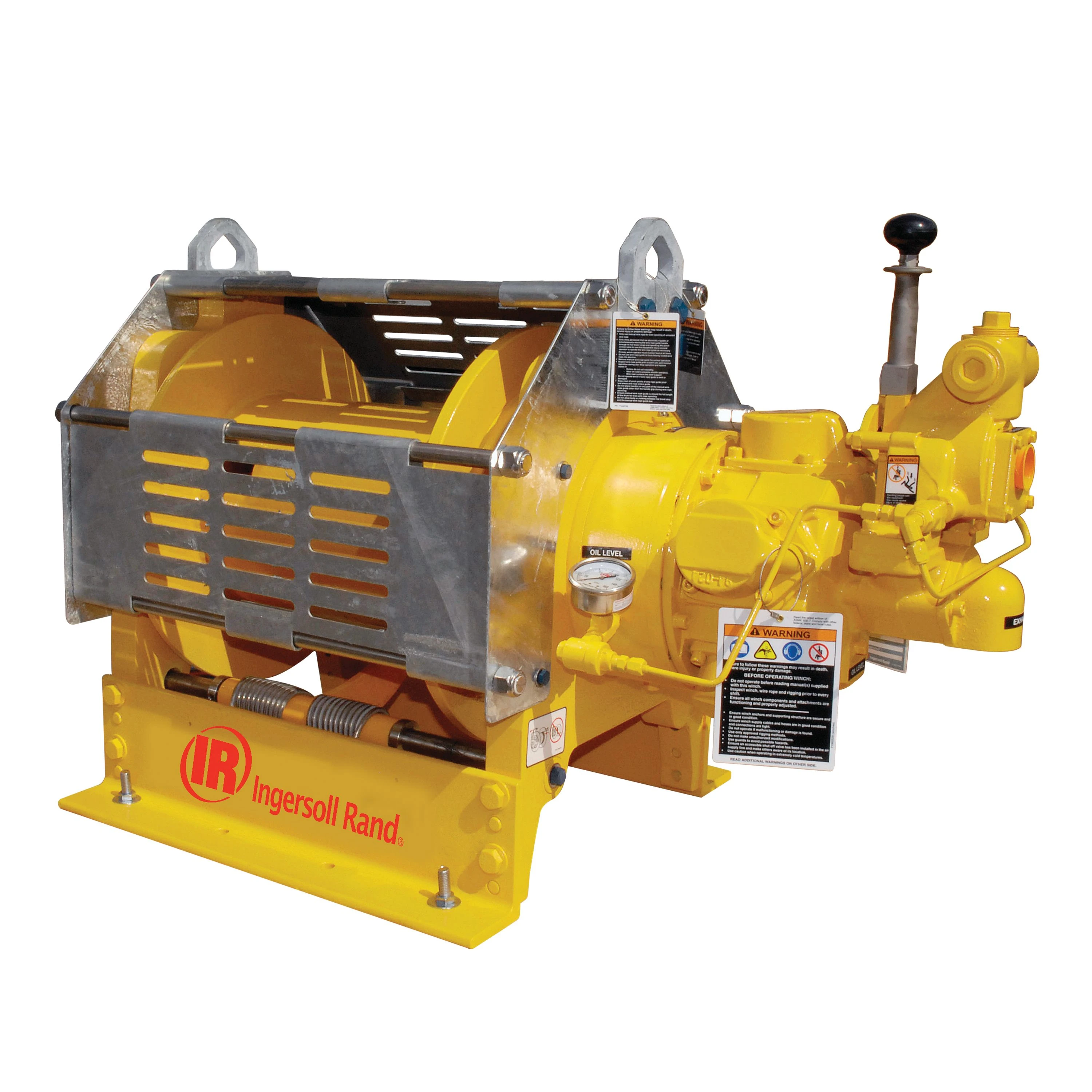

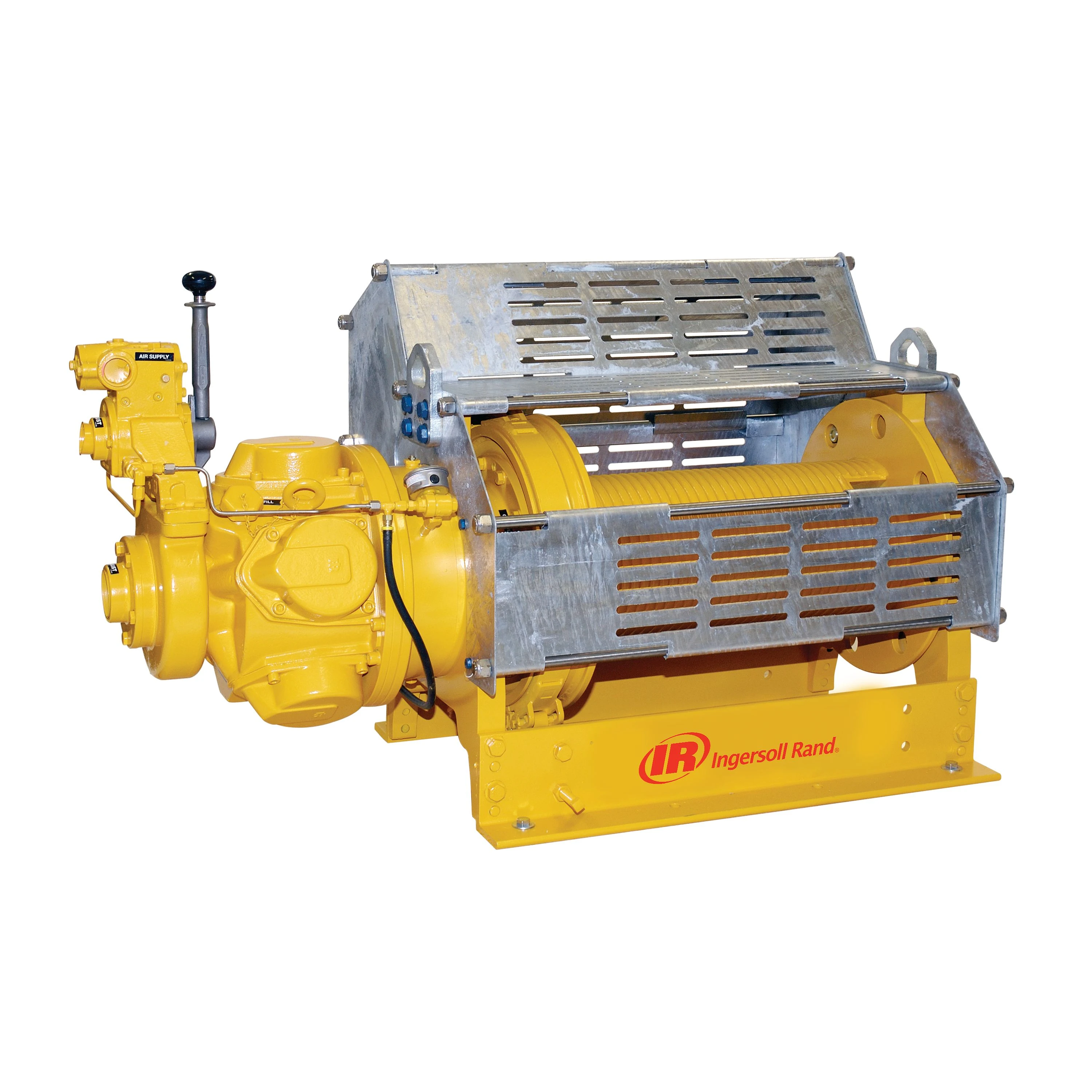

Infinity® Dual Purpose (Personnel & Utility) Air Winches

Ingersoll Rand Dual Purpose winches are designed to maximize the use of your equipment. They combine the time-tested, rugged durability of our standard Infinity winches with enhanced safety features for lifting personnel. In environments where dedicated Man Rider® winches are not required, Ingersoll Rand Dual Purpose winches offer you the versatility to lift people and material with one winch. They are ideally suited for lifting multiple people or personnel platforms.

Contact Us
Request a Quote
Aftermarket

Durability

  • Rugged all steel construction and fabricated steel frames for longer life
  • Powerful radial piston air motor provides reliable power and adjustable speed
  • Self-cleaning KSC2 control valve improves flow and performance

Safety

  • Adjustable drum guard provides protection for winch operators
  • Lift-to-Shift variable speed lever provides precise control and built-in safety
  • ATEX Zone 1 and Zone 2 compliance standard

Performance

  • Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
  • Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
  • Integrated gearbox-in-drum design for use in compact applications


Model

Rated Capacity at Top Layer kg (lb)

Lifting Speed at Top Layer m/min (fpm)

Air Consumption with Rated Load m3/min (ft3)

Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)

Sound Level as per EN 14492-1 dB(A)

Drum Capacity(1) Length m (ft)

Drum Capacity(1) Rope Diameter mm (in)

Net Weight kg (lb)

PERSONNEL LIFTING









FA2i-MR24MK1G

1,445 (3,180)

23 (75)

8 (280)

1.0 (37.3)

87

430 (1,435)

13 (1/2)

420 (925)

FA2.5i-MR24MK1G

1,445 (3,180)

53 (173)

20 (700)

1.1 (40.5)

97

430 (1,435)

13 (1/2)

574 (1,265)

FA5i-MR24MK1G

3,123 (6,870)

23 (75)

20 (700)

2.6 (93.3)

97

410 (1,346)

20 (3/4)

907 (2,000)

UTILITY LIFTING









FA2i-MR24MK1G

2,000 (4,400)

16 (51)

8 (280)

1.5 (54.9)

87

430 (1,435)

13 (1/2)

420 (925)

FA2.5i-MR24MK1G

2,273 (5,000)

40 (132)

20 (700)

1.5 (53.0)

97

430 (1,435)

13 (1/2)

574 (1,265)

FA5i-MR24MK1G

5,000 (11,000)

16 (54)

20 (700)

3.8 (129.6)

97

410 (1,346)

20 (3/4)

907 (2,000)

PTL-En-Product-Document-infinity-dual-purpose-air

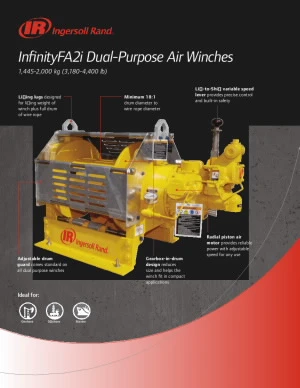

Infinity FA2i Dual-Purpose Air Winches

PTL-En-Product-Document-infinity-dual-purpose-air-V1

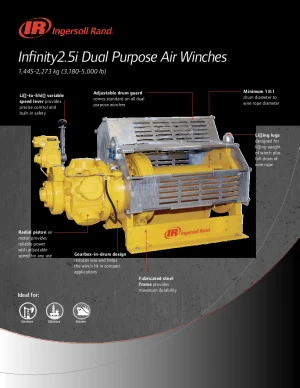

Infinity 2.5i Dual Purpose Air Winches

PTL-En-Product-Document-infinity-dual-purpose-air-V2

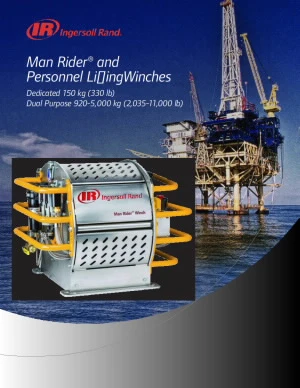

Man Rider and Personnel Lifting Winches

PTL-En-Product-Document-infinity-dual-purpose-air-V3

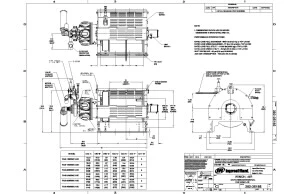

INFINITY DUAL PURPOSE AIR WINCHES - FA5I-MRMK1-CE WITH MANUAL BAND & AUTO DISC BRAKE & CE

PTL-En-Product-Document-infinity-dual-purpose-air-V4

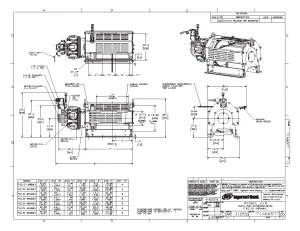

INFINITY DUAL PURPOSE AIR WINCHES - FA2.5I-MRMK1 WITH MANUAL BAND & AUTO DISC BRAKE

PTL-En-Product-Document-infinity-dual-purpose-air-V5

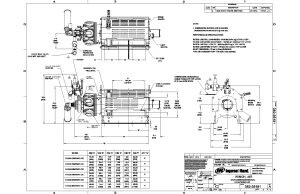

INFINITY DUAL PURPOSE AIR WINCHES - FA2.5I-MRMK1-CE WITH MANUAL BAND & AUTO DISC BRAKE & CE

PTL-En-Product-Document-infinity-dual-purpose-air-V6

Winch and Hoist Markets and Applications Overview

PTL-En-Product-Document-infinity-dual-purpose-air-V6

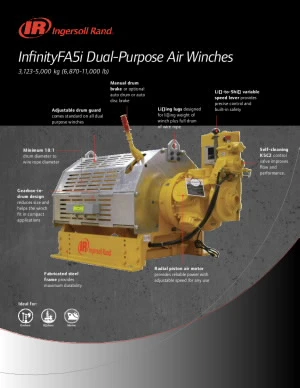

Infinity FA5i Dual-Purpose Air Winches

PTL-En-Product-Document-infinity-dual-purpose-air-V8

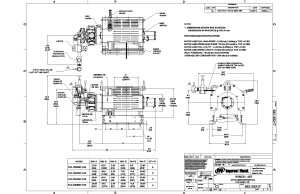

2 ton - Infinity Dual Purpose Air Winches FA2iMRMK1CE with Manual Band Auto Disc Brake CE
