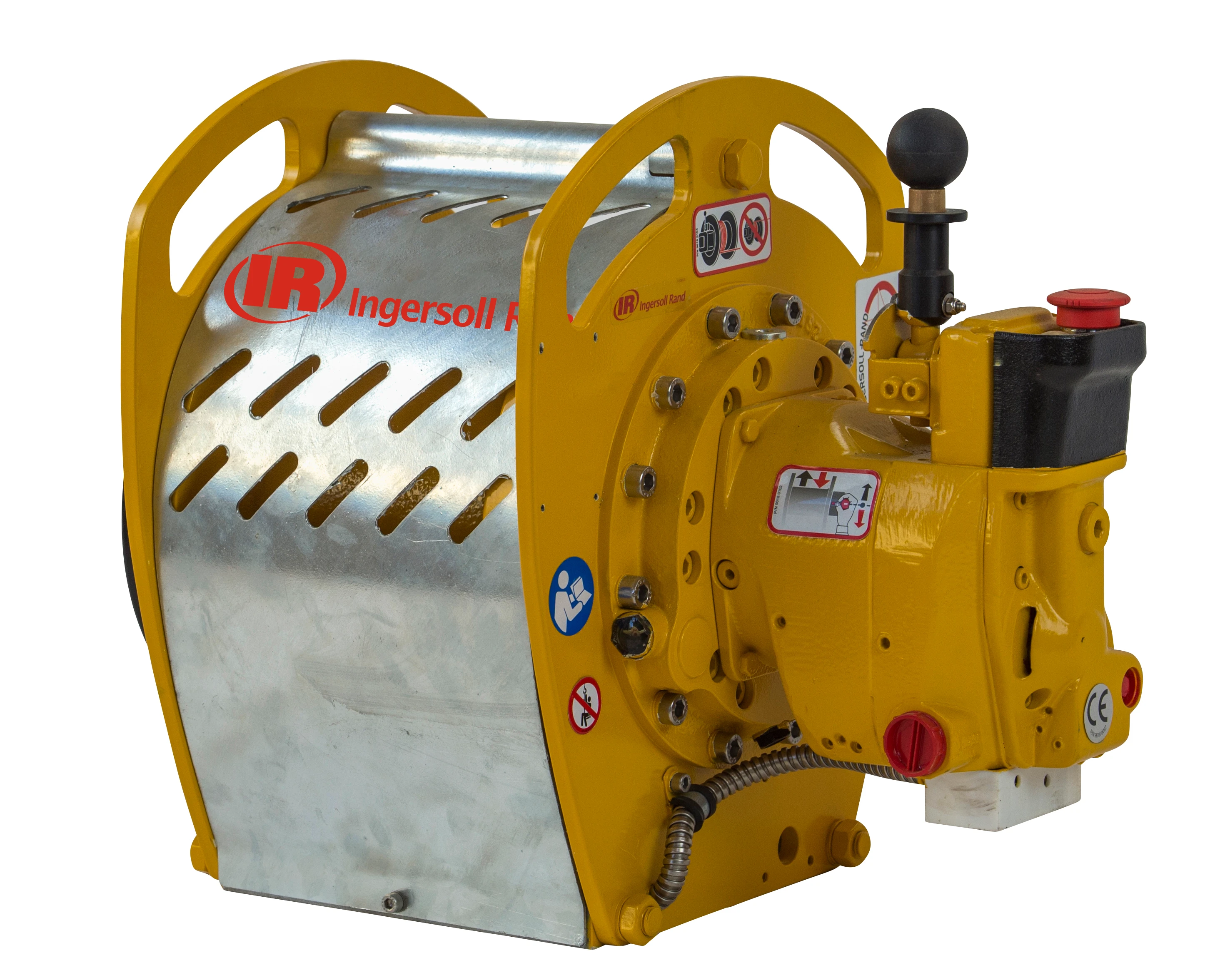

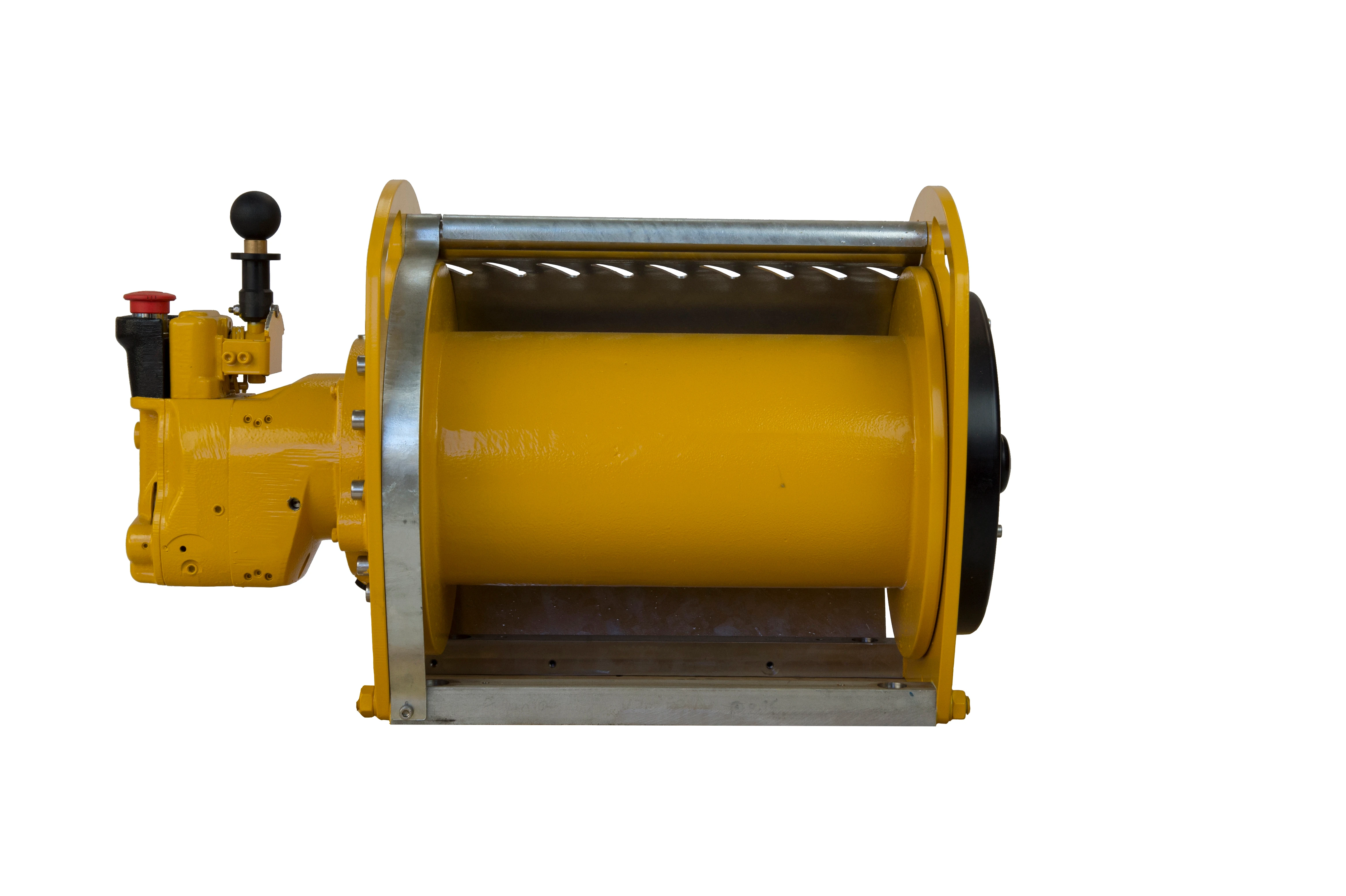

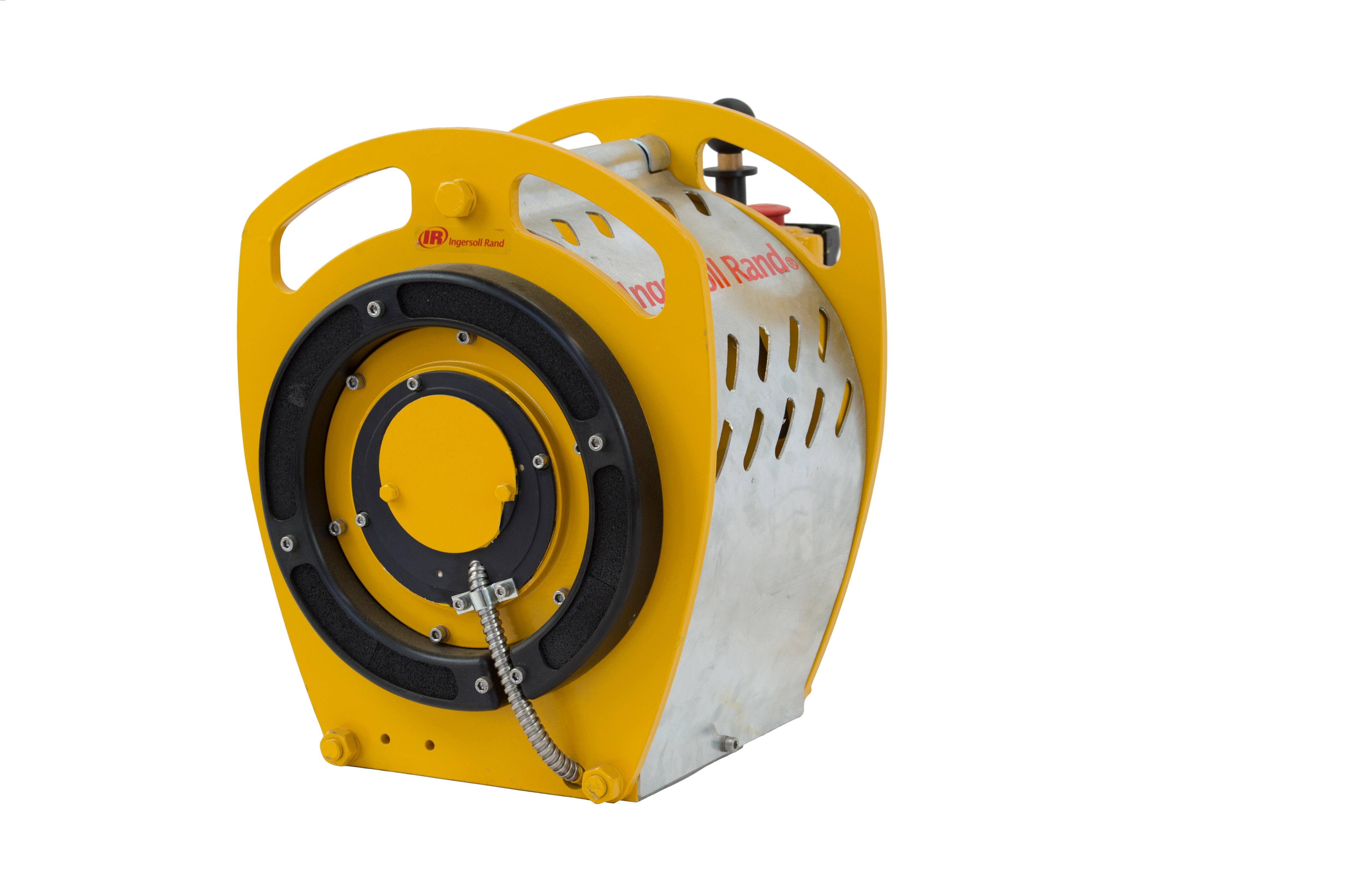

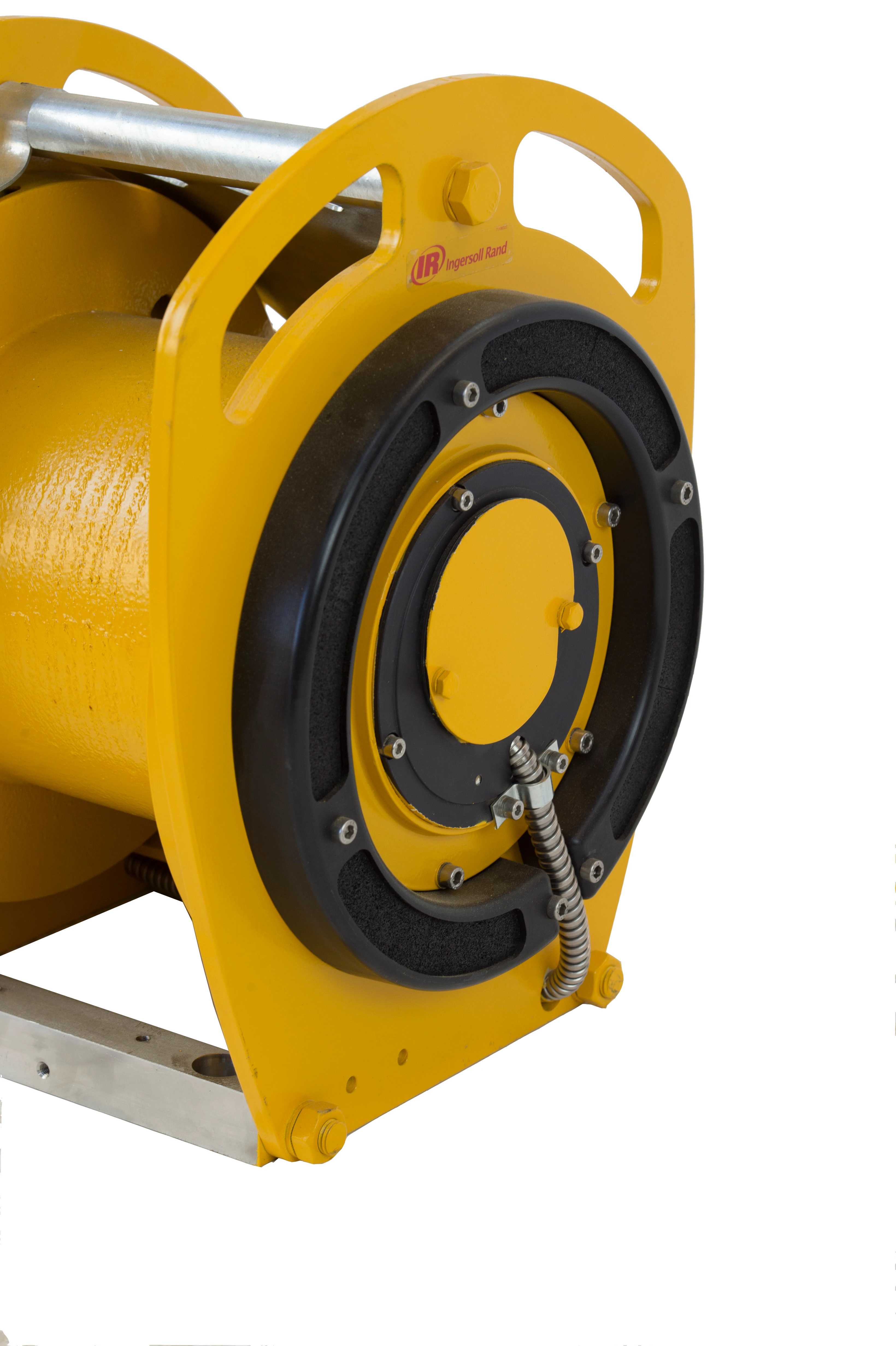

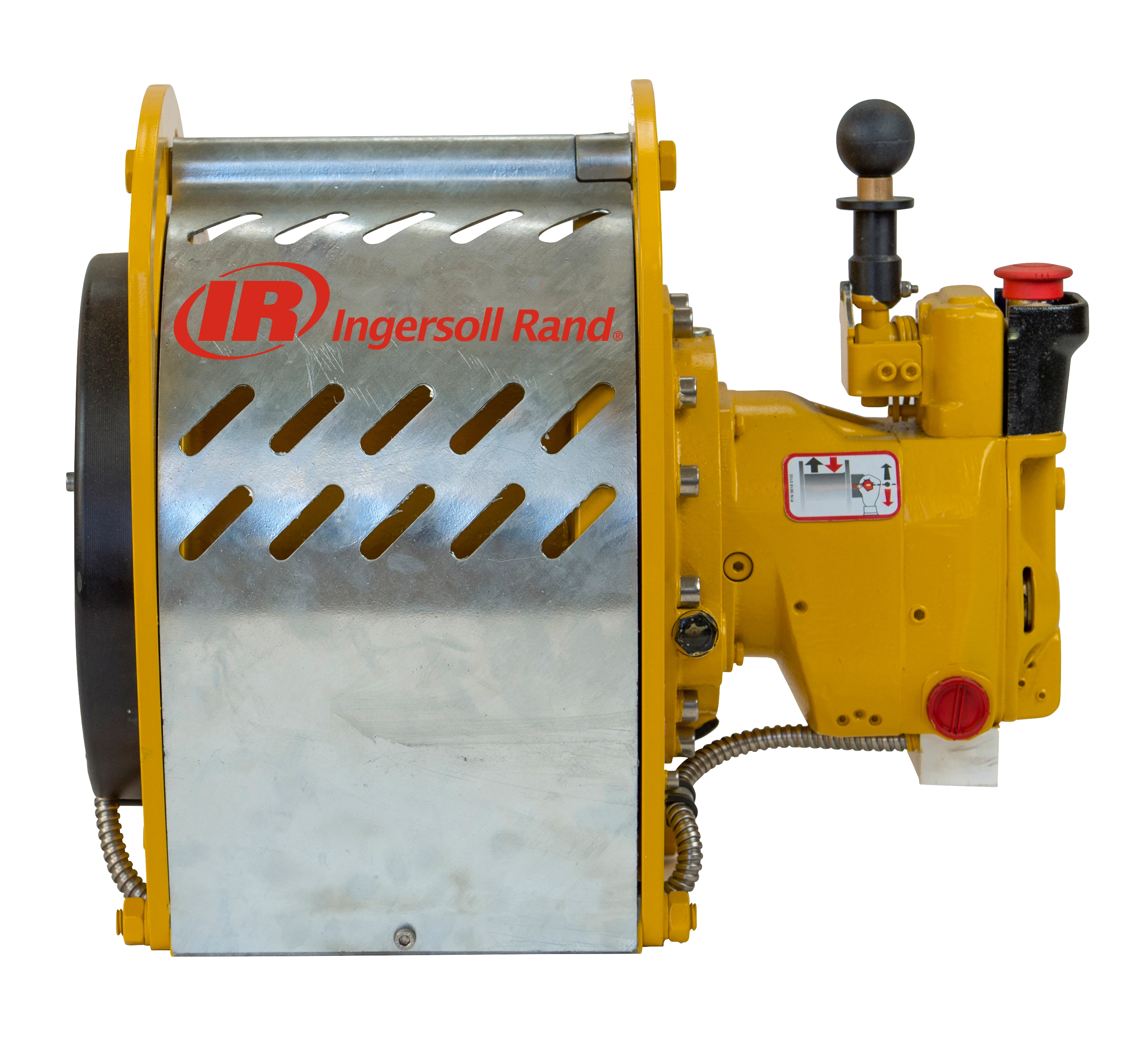

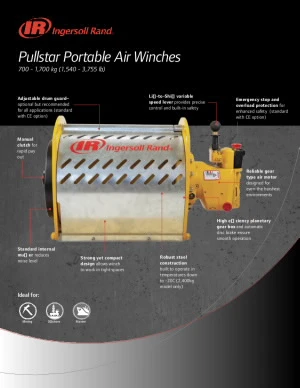

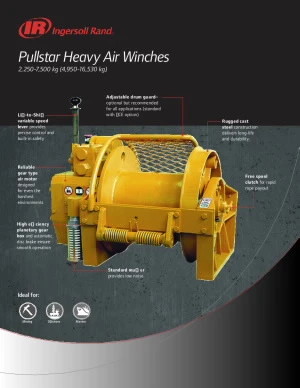

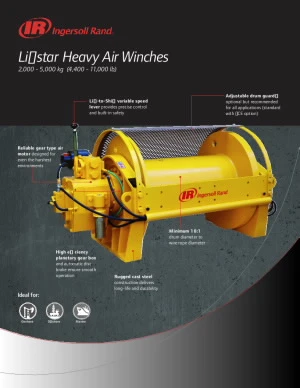

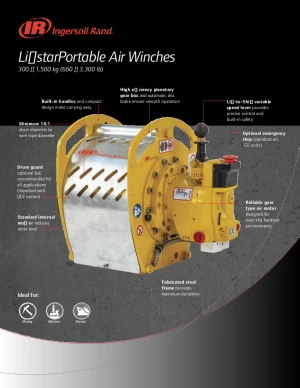

Liftstar® and Pullstar® Air Winches

Durability

• Rugged cast iron and steel construction delivers long-life
• Reliable gear type air motor designed for the harshest environments

Safety

• Standard internal muffler reduces noise levels
• Lift-to-Shift variable speed lever provides precise control and built-in safety

Performance

• High efficiency planetary gear box and automatic disc brake ensure smooth operation
• Easily configured to meet worldwide standards including ANSI/ASME B30.7 and CE FEM Classification 1 Bm
• Manual clutch (portable) and free spool clutch (heavy) for rapid payout

Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating. Pulling Ratings at 3.5:1 design factor and performance at 6.3 bar (90) psi at air inlet when winch is operating.

(1) Top layer speed is based on rated capacity.

(2) Wire rope is tightly wound with no freeboard.

(3) For PS4000RCG-L line pulls are reduced by 10% and line speeds are increased by 10%.

<table>

<thead>

<tr>

<th>Model</th>

<th>LS2-300R-L</th>

<th>LS2-300RGC-L</th>

<th>LS2-600R-L</th>

<th>LS2-600RGC-L</th>

<th>LS2-1500R-L</th>

<th>LS2-1500RGC-L</th>

<th>PS2-1000R-L</th>

<th>PS2-1000RGC-L</th>

<th>PS2-2400R-L</th>

<th>PS2-2400RGC-L</th>

<th>LS2000R-L</th>

<th>LS2000RGC-L</th>

<th>LS5000R-L</th>

<th>LS5000RGC-L</th>

<th>PS4000R-L</th>

<th>PS4000RGC-L(3)</th>

<th>PS10000R-L</th>

<th>PS10000RGC-L</th>

</tr>

</thead>

<tbody>

<tr>

<td>Line Pull Capacity First Layer kg (lb)</td>

<td>300 (660)</td>

<td>300 (660)</td>

<td>600 (1,320)</td>

<td>600 (1,320)</td>

<td>1,500 (3,300)</td>

<td>1,500 (3,300)</td>

<td>1,000 (2,200)</td>

<td>1,000 (2,200)</td>

<td>2,400 (5,280)</td>

<td>2,400 (5,280)</td>

<td>2,800 (6,170)</td>

<td>2,800 (6,170)</td>

<td>6,500 (14,330)</td>

<td>6,500 (14,330)</td>

<td>4,000 (8,800)</td>

<td>3,600 (7,920)</td>

<td>10,000 (22,000)</td>

<td>10,000 (22,000)</td>

</tr>

<tr>

<td>Line Pull Capacity Mid Drum kg (lb)</td>

<td>300 (660)</td>

<td>300 (660)</td>

<td>600 (1,320)</td>

<td>600 (1,320)</td>

<td>1,500 (3,300)</td>

<td>1,500 (3,300)</td>

<td>850 (1,870)</td>

<td>850 (1,870)</td>

<td>2,150 (4,730)</td>

<td>2,150 (4,730)</td>

<td>2,400 (5,290)</td>

<td>2,400 (5,290)</td>

<td>5,750 (12,670)</td>

<td>5,750 (12,670)</td>

<td>3,250 (7,150)</td>

<td>2,925 (6,435)</td>

<td>8,740 (19,265)</td>

<td>8,740 (19,265)</td>

</tr>

<tr>

<td>Line Pull Capacity Top Layer kg (lb)</td>

<td>300 (660)</td>

<td>300 (660)</td>

<td>600 (1,320)</td>

<td>600 (1,320)</td>

<td>1,500 (3,300)</td>

<td>1,500 (3,300)</td>

<td>700 (1,540)</td>

<td>700 (1,540)</td>

<td>2,000 (4,400)</td>

<td>2,000 (4,400)</td>

<td>2,000 (4,400)</td>

<td>2,000 (4,400)</td>

<td>5,000 (11,000)</td>

<td>5,000 (11,000)</td>

<td>2,500 (5,500)</td>

<td>2,250 (4,950)</td>

<td>7,500 (16,530)</td>

<td>7,500 (16,530)</td>

</tr>

<tr>

<td>Lifting/Pulling Speed at Top Layer(1) m/min (fpm)</td>

<td>40 (131)</td>

<td>40 (131)</td>

<td>20 (66)</td>

<td>20 (66)</td>

<td>9.5 (31)</td>

<td>9.5 (31)</td>

<td>20 (66)</td>

<td>20 (66)</td>

<td>6 (20)</td>

<td>6 (20)</td>

<td>20 (66)</td>

<td>20 (66)</td>

<td>10 (33)</td>

<td>10 (33)</td>

<td>7 (23)</td>

<td>8 (25)</td>

<td>4 (14)</td>

<td>4 (14)</td>

</tr>

<tr>

<td>Air Consumption with Rated Load m3/min (ft3/min)</td>

<td>4 (141)</td>

<td>4 (141)</td>

<td>4 (141)</td>

<td>4 (141)</td>

<td>4.8 (169)</td>

<td>4.8 (169)</td>

<td>4 (141)</td>

<td>4 (141)</td>

<td>4.8 (169)</td>

<td>4.8 (169)</td>

<td>10 (353)</td>

<td>10 (353)</td>

<td>10 (353)</td>

<td>10 (353)</td>

<td>12 (424)</td>

<td>12 (424)</td>

<td>12 (424)</td>

<td>12 (424)</td>

</tr>

<tr>

<td>Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)</td>

<td>0.3 (10.8)</td>

<td>0.3 (10.8)</td>

<td>0.6 (21.4)</td>

<td>0.6 (21.4)</td>

<td>1.5 (53.0)</td>

<td>1.5 (53.0)</td>

<td>0.6 (21.4)</td>

<td>0.6 (21.4)</td>

<td>2.4 (84.8)</td>

<td>2.4 (84.8)</td>

<td>1.5 (53.5)</td>

<td>1.5 (53.5)</td>

<td>3.0 (107.0)</td>

<td>3.0 (107.0)</td>

<td>5.1 (184.3)</td>

<td>4.5 (169.6)</td>

<td>9.0 (302.9)</td>

<td>9.0 (302.9)</td>

</tr>

<tr>

<td>Sound Level as per EN 14492-1 dB(A)</td>

<td>92</td>

<td>92</td>

<td>92</td>

<td>92</td>

<td>90</td>

<td>90</td>

<td>92</td>

<td>92</td>

<td>90</td>

<td>90</td>

<td>95</td>

<td>95</td>

<td>87</td>

<td>87</td>

<td>95</td>

<td>95</td>

<td>87</td>

<td>87</td>

</tr>

<tr>

<td>Drum Capacity(2) Rope Length m (ft)</td>

<td>150 (492)</td>

<td>307 (1,007)</td>

<td>89 (292)</td>

<td>183 (600)</td>

<td>61 (200)</td>

<td>128 (420)</td>

<td>89 (292)</td>

<td>183 (600)</td>

<td>60 (197)</td>

<td>127 (417)</td>

<td>156 (512)</td>

<td>230 (755)</td>

<td>224 (494)</td>

<td>473 (1,043)</td>

<td>156 (512)</td>

<td>230 (755)</td>

<td>224 (735)</td>

<td>473 (1,552)</td>

</tr>

<tr>

<td>Drum Capacity(2) Rope Diameter mm (in)</td>

<td>5 (3/16)</td>

<td>5 (3/16)</td>

<td>6.5 (1/4)</td>

<td>6.5 (1/4)</td>

<td>11 (7/16)</td>

<td>11 (7/16)</td>

<td>6.5 (1/4)</td>

<td>6.5 (1/4)</td>

<td>11 (7/16)</td>

<td>11 (7/16)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>20 (3/4)</td>

<td>20 (3/4)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>20 (3/4)</td>

<td>20 (3/4)</td>

</tr>

<tr>

<td>Net Weight kg (lb)</td>

<td>42 (93)</td>

<td>49 (108)</td>

<td>42 (93)</td>

<td>49 (108)</td>

<td>85 (187)</td>

<td>100 (220)</td>

<td>38 (84)</td>

<td>45 (99)</td>

<td>85 (187)</td>

<td>100 (220)</td>

<td>230 (507)</td>

<td>283 (624)</td>

<td>645 (1,422)</td>

<td>760 (1,676)</td>

<td>225 (496)</td>

<td>278 (613)</td>

<td>640 (1,411)</td>

<td>755 (1,664)</td>

</tr>

</tbody>

</table>
