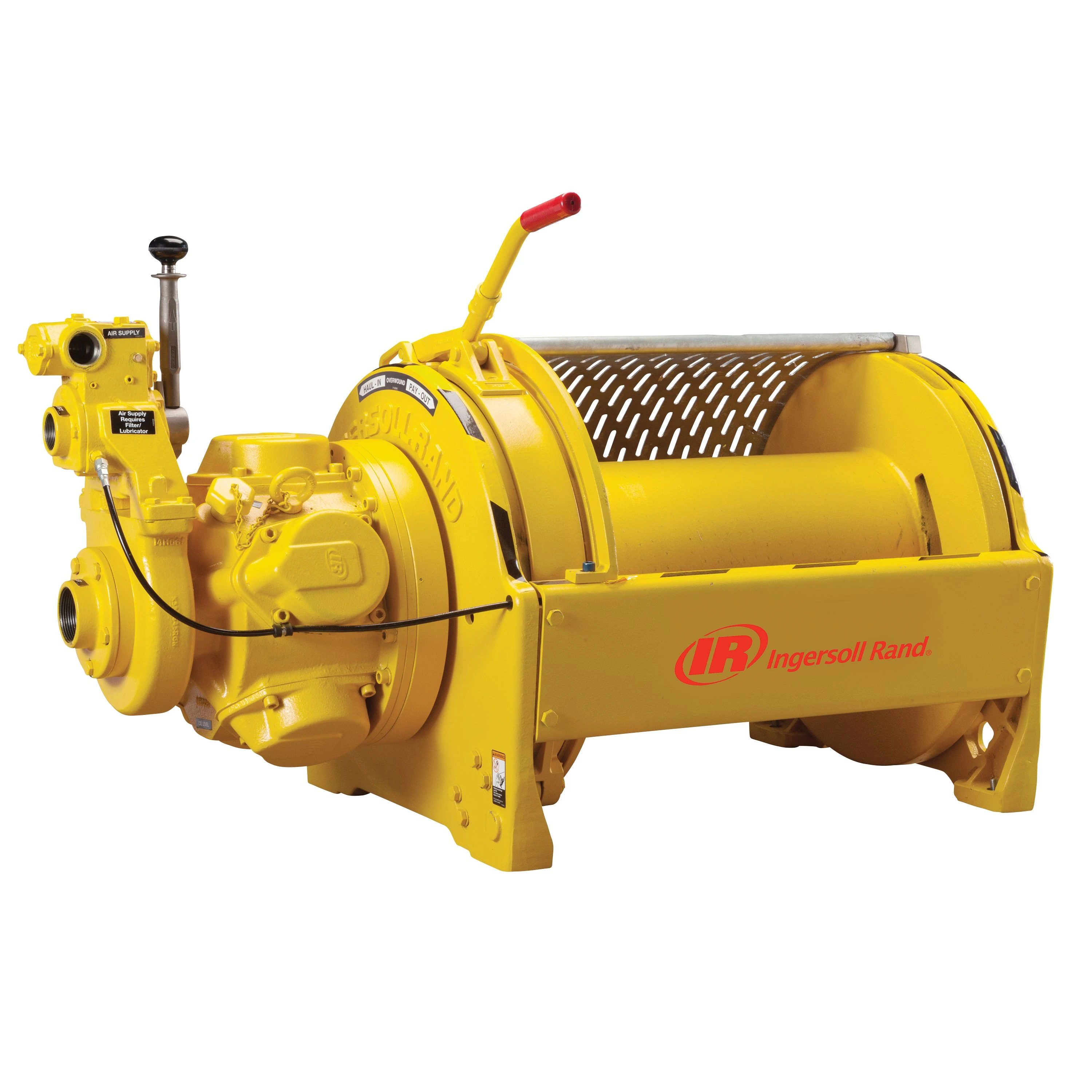

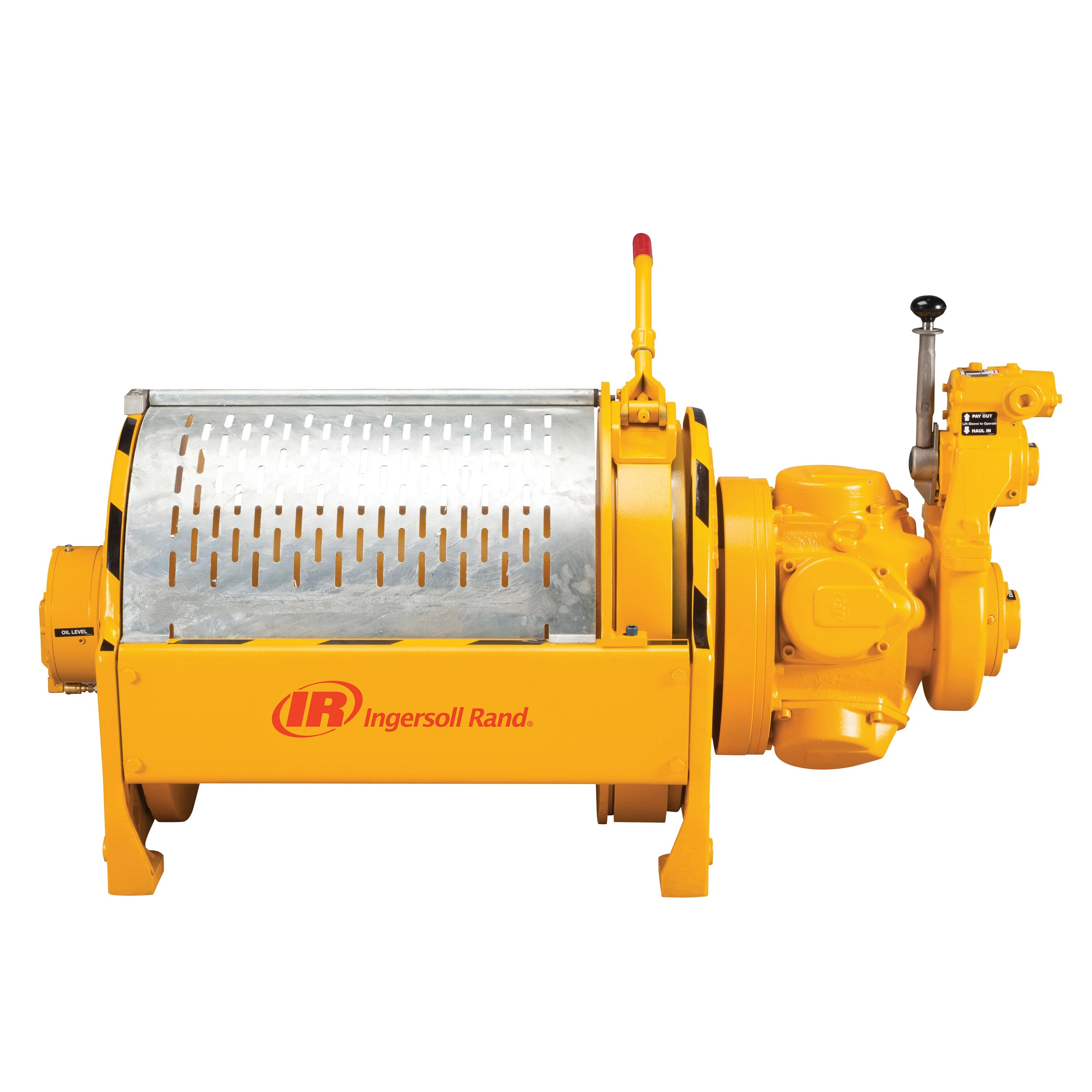

Third Generation™ Dual Purpose (Personnel & Utility) Air Winches

PTL-En-Product-Photo-third-generation-dual-purpose-air

PTL-En-Product-Photo-third-generation-dual-purpose-air-V2

Ingersoll Rand Third Generation Dual Purpose winches maximize the use of your equipment by combing time-tested, durability with enhanced safety features for lifting people. Third Generation Dual Purpose winches meet strict regulations for lifting people or platforms while still performing well for utility purposes. Whether your application is offshore, onshore or marine, when you need to manage costs and keep people safe, Third Generation Dual Purpose winches get the job done.

Request a Quote

Aftermarket

Durability

Rugged cast iron and steel construction for extremely long life
18:1 drum to wire rope diameter minimizes unnecessary wear and increases the life of wire rope

Safety

Drum guard included for additional protection
Lift-to-Shift variable speed lever provides precise control and built-in safety
Gearbox-in-drum design reduces size and helps the winch ﬁt in compact applications

Performance

Radial piston air motor provides reliable power with adjustable speed for any application
Standard drum brake or optional auto disc or auto drum brake provides superior stopping power
Self-cleaning control valve improves ﬂow and performance

<table>

<thead>

<tr>

<th>Model</th>

<th>Rated Capacity at Top Layer kg (lb)</th>

<th>Lifting Speed at Top Layer m/min (fpm)</th>

<th>Air Consumption with Rated Load m3/min (ft3/min)</th>

<th>Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)</th>

<th>Sound Level as per EN 14492-1 dB(A)</th>

<th>Drum Capacity(1) Rope Length m (ft)</th>

<th>Drum Capacity(1) Rope Diameter mm (in)</th>

<th>Net Weight kg (lb)</th>
