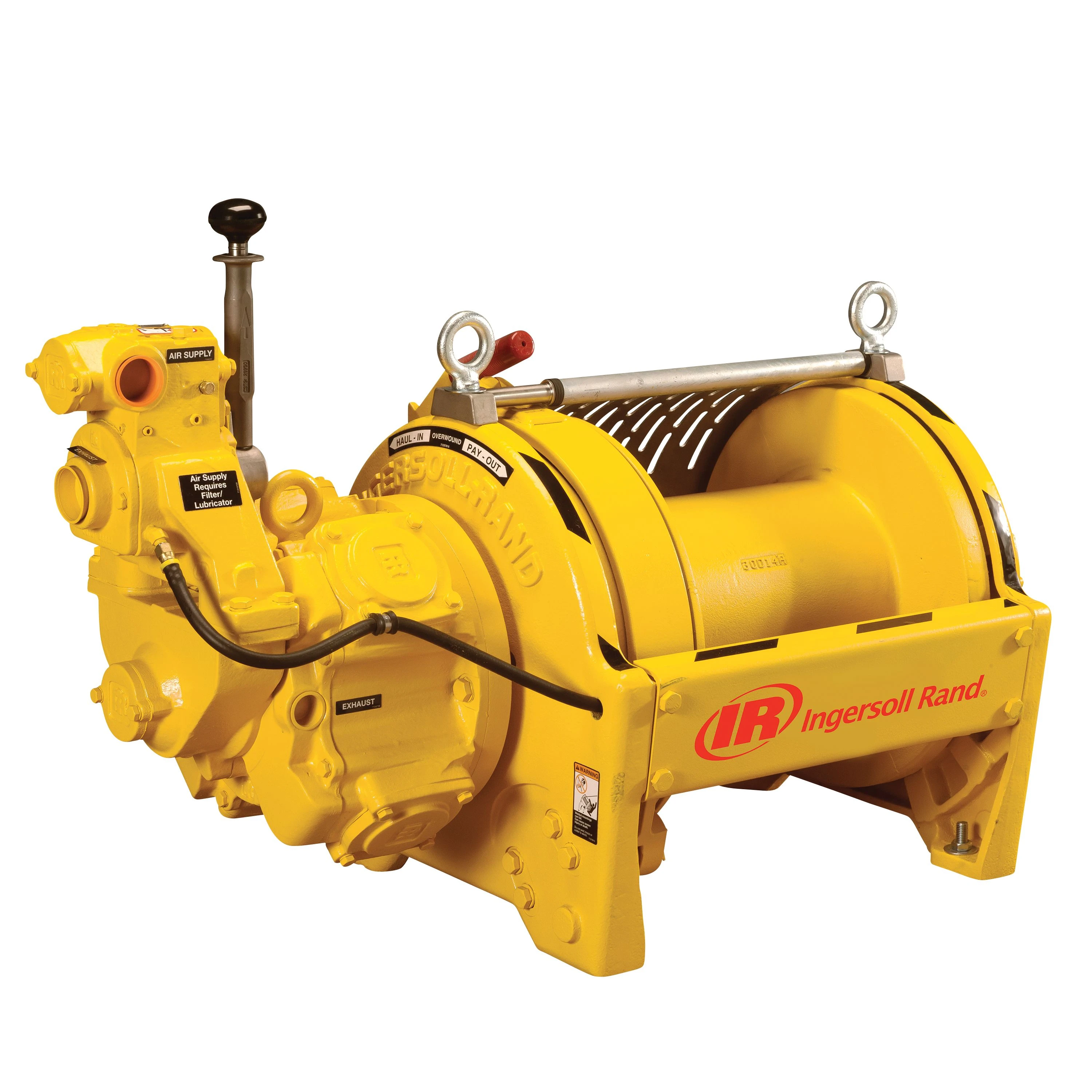

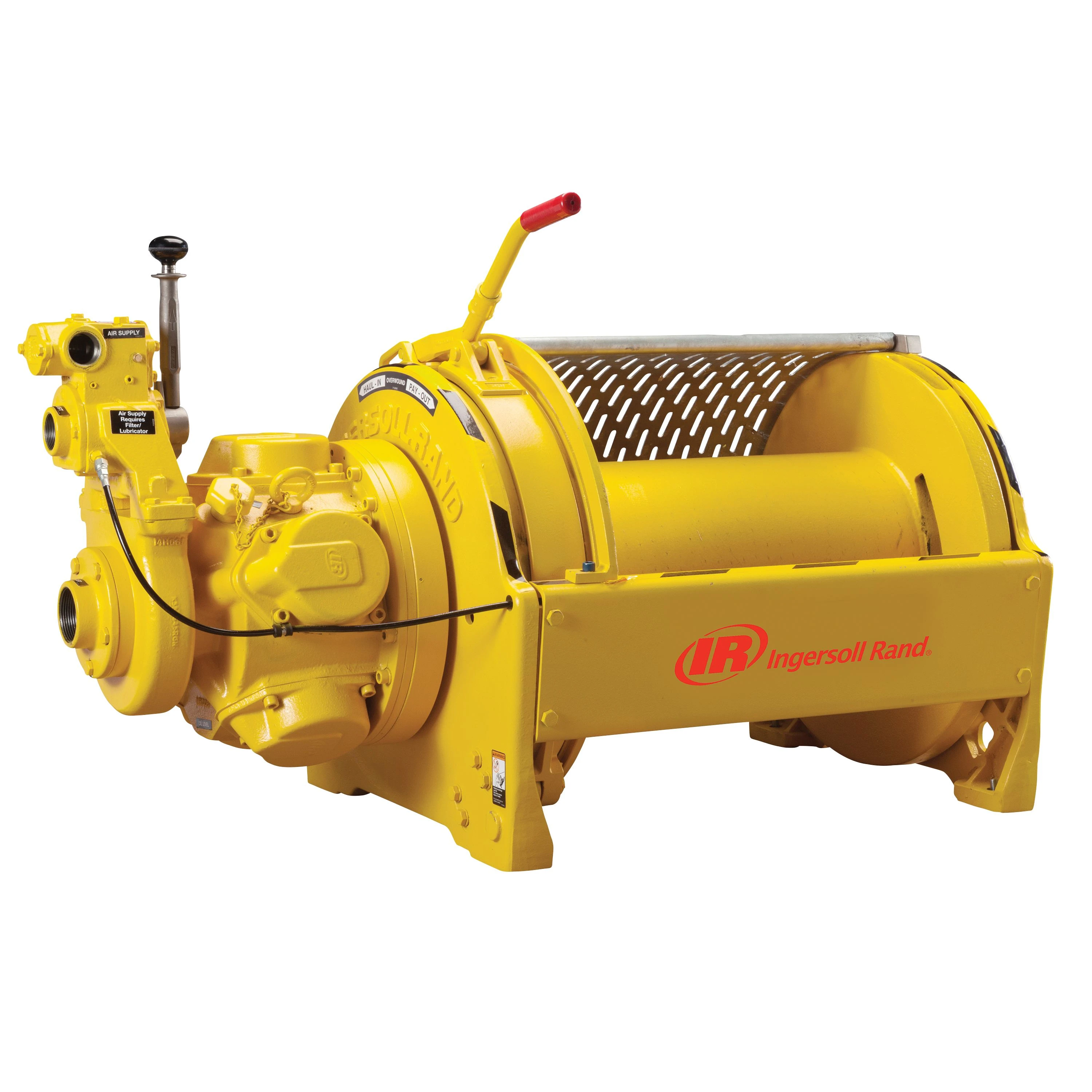

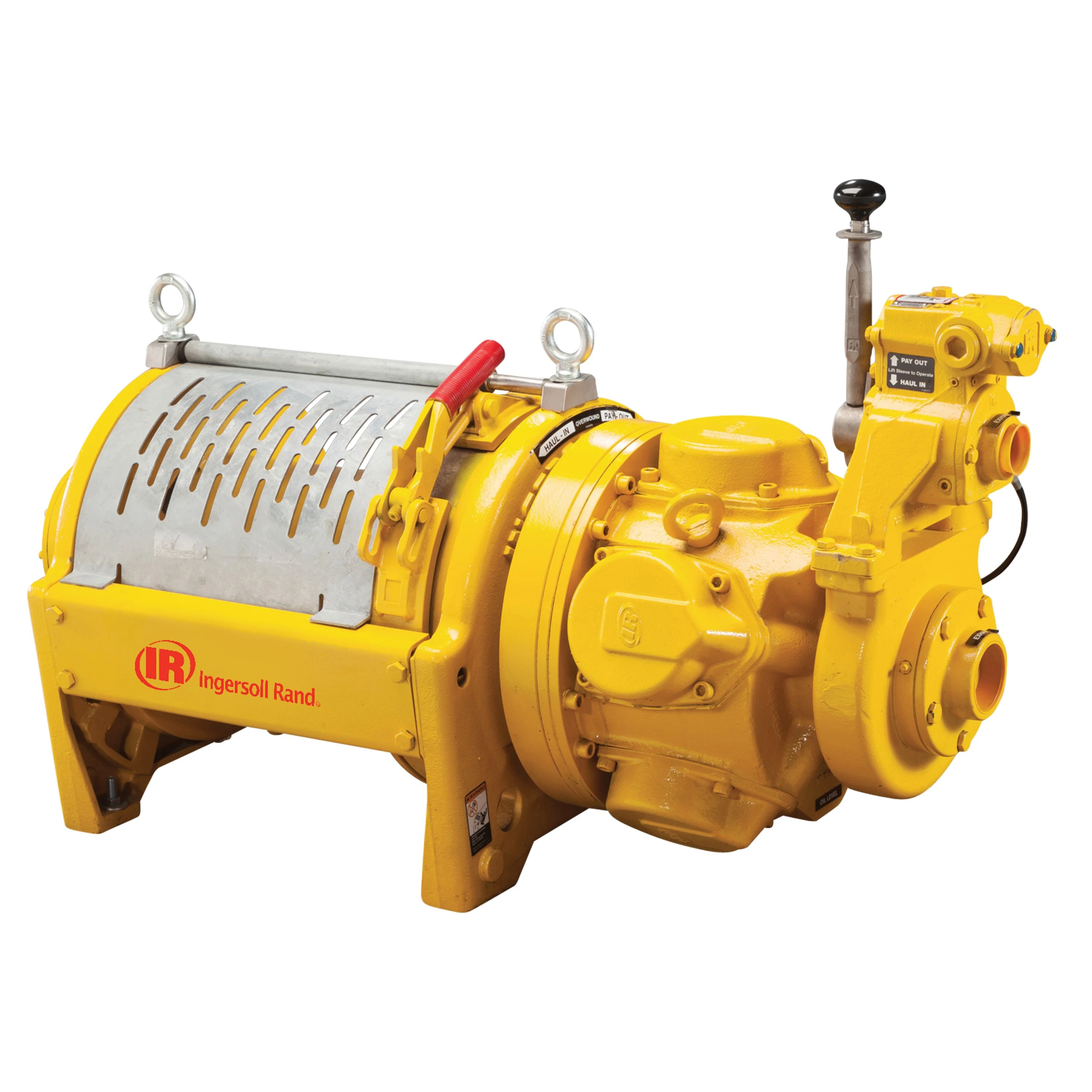

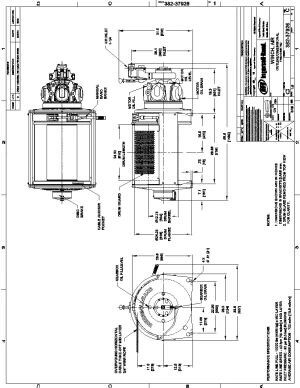

Third Generation™ Air Winches

PTL-En-Product-Photo-third-generation-air

PTL-En-Product-Photo-third-generation-air

PTL-En-Product-Photo-third-generation-air-V2

PTL-En-Product-Photo-third-generation-air-V2

PTL-En-Product-Photo-third-generation-air-V3

PTL-En-Product-Photo-third-generation-air-V3

PTL-En-Product-Photo-third-generation-air

PTL-En-Product-Photo-third-generation-air

PTL-En-Product-Photo-third-generation-air-V2

PTL-En-Product-Photo-third-generation-air-V2

PTL-En-Product-Photo-third-generation-air-V3

PTL-En-Product-Photo-third-generation-air-V3

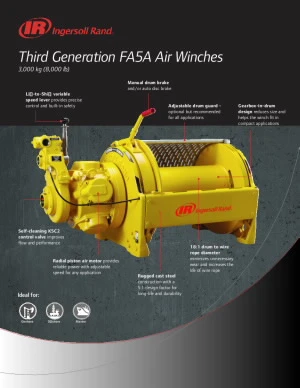

Ingersoll Rand Third Generation Air Winches are the workhorse winches of the Ingersoll Rand winch line. They have all the features you need and none you don’t to get the job done. Designed with premium features and built using rugged cast iron and steel, Ingersoll Rand doesn’t take shortcuts and never uses inferior components. Trusted by oilmen, offshore workers, miners and heavy construction crews around the globe, you can count on Ingersoll Rand Third Generation winches to get the job done.

Request a Quote

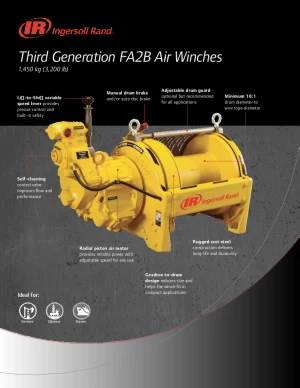

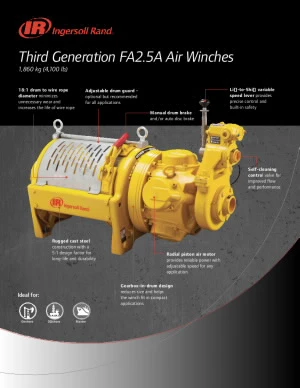

Durability

Rugged cast steel construction with 5:1 design factor delivers long-life
Minimum 18:1 drum diameter to wire rope diameter increases rope life

Safety

Lift-to-Shift variable speed lever provides precise control and built-in safety
Gearbox-in-drum design reduces size and helps the winch ﬁt in compact applications

Performance

Powerful radial piston air motor provides reliable power and adjustable speed for any use
Self-cleaning control valve improves ﬂow and performance
Standard drum brake or optional auto disc brake provides superior stopping power

<table>

<thead>

<tr>

<th>Model</th>

<th>FA2B-7**</th>

<th>FA2B-13**</th>

<th>FA2B-20**</th>

<th>FA2B-24**</th>

<th>FA2.5A-7**</th>

<th>FA2.5A-13**</th>

<th>FA2.5A-20**</th>

<th>FA2.5A-24**</th>

<th>FA5A-12**</th>

<th>FA5A-24**</th>

</tr>

</thead>

<tbody>

<tr>

<td>Line Pull Capacity First Layer kg (lb)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,260 (5,000)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>2,810 (6,200)</td>

<td>5,890 (13,000)</td>

<td>5,890 (13,000)</td>

</tr>

<tr>

<td>Line Pull Capacity Mid Drum kg (lb)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>1,820 (4,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>2,270 (5,000)</td>

<td>4,540 (10,000)</td>

<td>4,540 (10,000)</td>

</tr>

<tr>

<td>Line Pull Capacity Top Layer kg (lb)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,450 (3,200)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>1,860 (4,100)</td>

<td>3,600 (8,000)</td>

<td>3,600 (8,000)</td>

</tr>

<tr>

<td>Lifting Speed at Top Layer(1) m/min (fpm)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>37 (122)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>43 (141)</td>

<td>13 (43)</td>

<td>13 (43)</td>

</tr>

<tr>

<td>Air Consumption with Rated Load m3/min (ft3/min)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>10 (350)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

<td>20 (700)</td>

</tr>

<tr>

<td>Air Volume Needed to Move Rated Load at Top Layer 3 m (10ft)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>0.8 (28.7)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>1.4 (49.6)</td>

<td>4.6 (162.8)</td>

<td>4.6 (162.8)</td>

</tr>

<tr>

<td>Sound Level as per EN 14492-1 dB(A)</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>87</td>

<td>89</td>

<td>89</td>

</tr>

<tr>

<td>Drum Capacity Rope Length m (ft)</td>

<td>108 (356)</td>

<td>217 (712)</td>

<td>325 (1,068)</td>

<td>392 (1,287)</td>

<td>63 (206)</td>

<td>127 (416)</td>

<td>191 (625)</td>

<td>230 (754)</td>

<td>177 (581)</td>

<td>366 (1,200)</td>

</tr>

<tr>

<td>Drum Capacity Rope Diameter mm (in)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>13 (1/2)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>16 (5/8)</td>

<td>20 (3/4)</td>

<td>20 (3/4)</td>

</tr>

<tr>

<td>Net Weight kg (lb)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>308 (679)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td>372 (818)</td>

<td>569 (1,254)</td>

<td>569 (1,254)</td>

</tr>

</tbody>

</table>
