耐用性好
- 坚固的全钢结构和装配式钢框架，使用寿命更长
- 强大的径向活塞气动马达提供了可靠的动力和可调节的速度
- 自清洁 KSC2 控制阀提高了流量和性能
安全性好
- 5:1 的设计系数，实现了安全工作负载
- 提升换档变速杆提供精确控制和内在安全性
- ATEX Zone 1 和 Zone 2 合规标准
性能高
- 18:1 的滚筒直径与钢索直径最小比例，可减少钢索磨损
- 滚筒内集成齿轮箱设计，适用于紧凑型应用
- 内置吊耳设计，用于提升绞车和钢索的重量
- Guideline/Podline 深水型号专为海上应用而设计

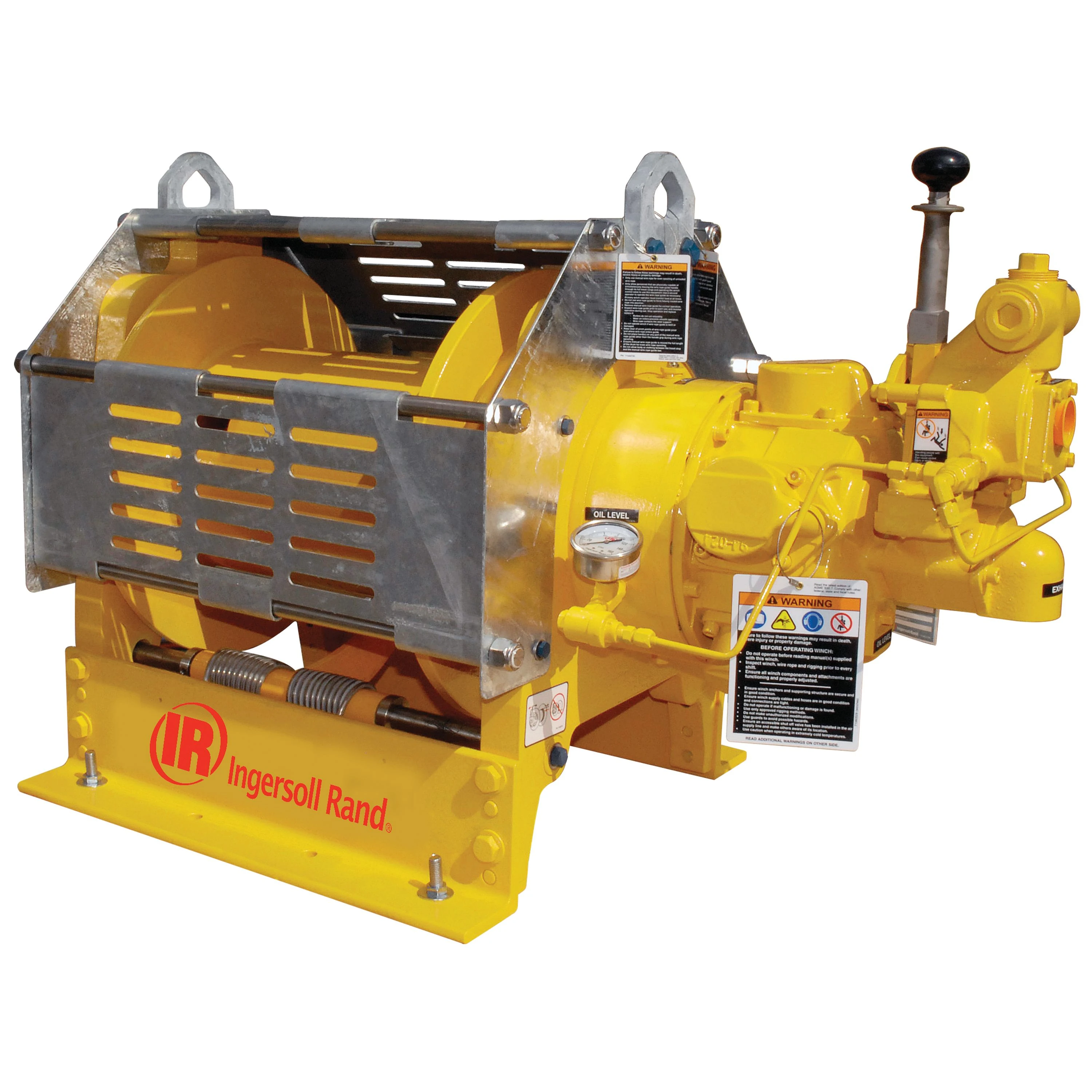

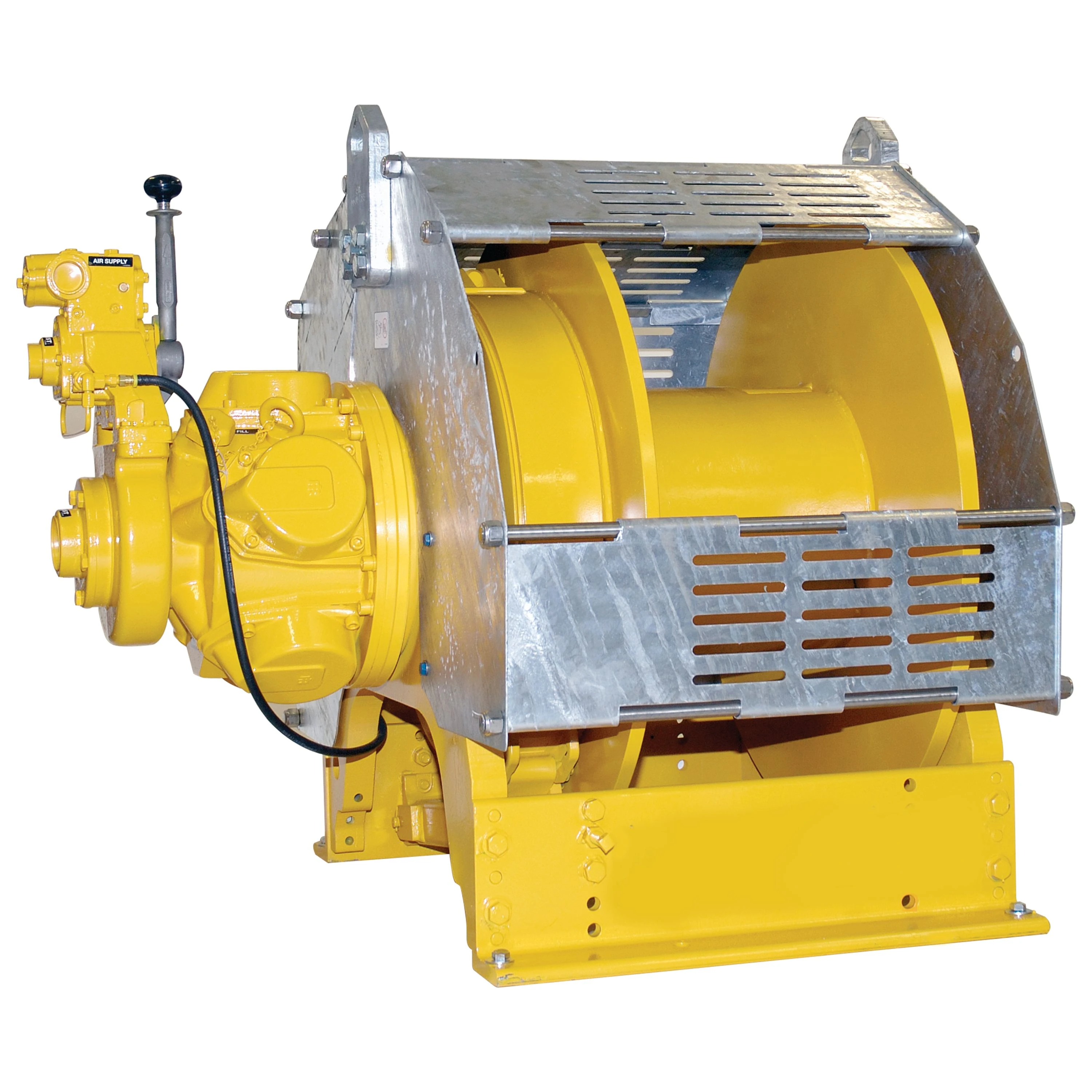

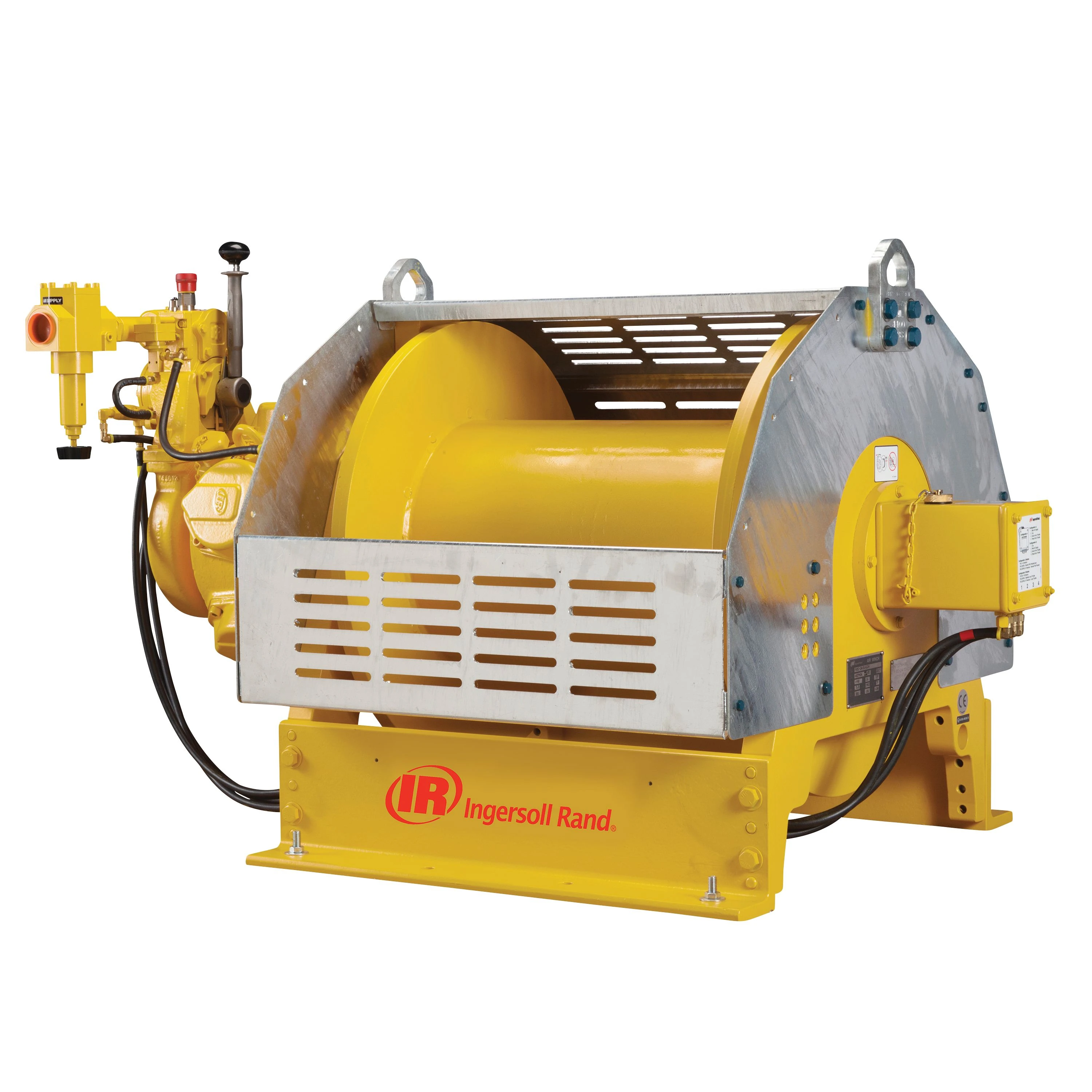

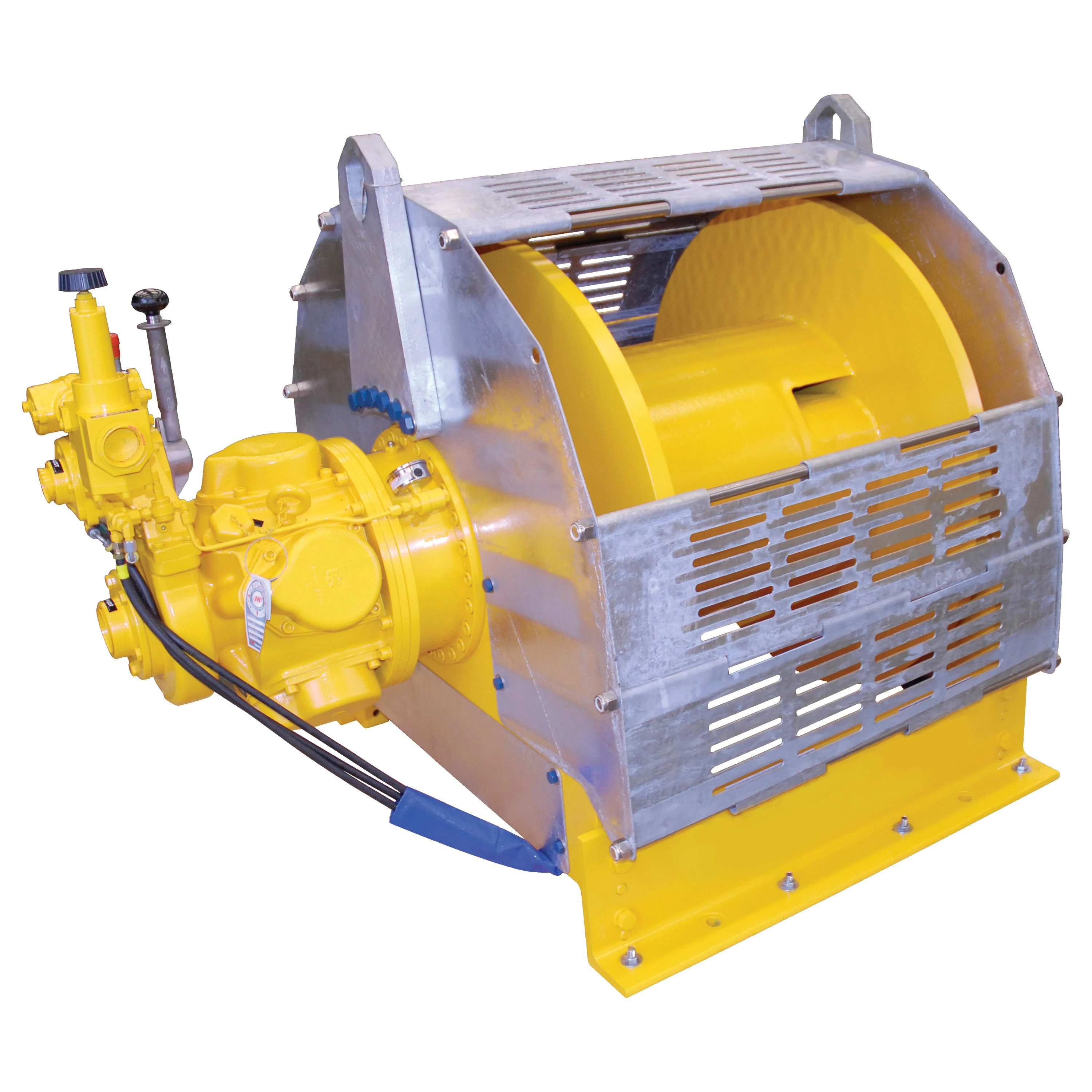

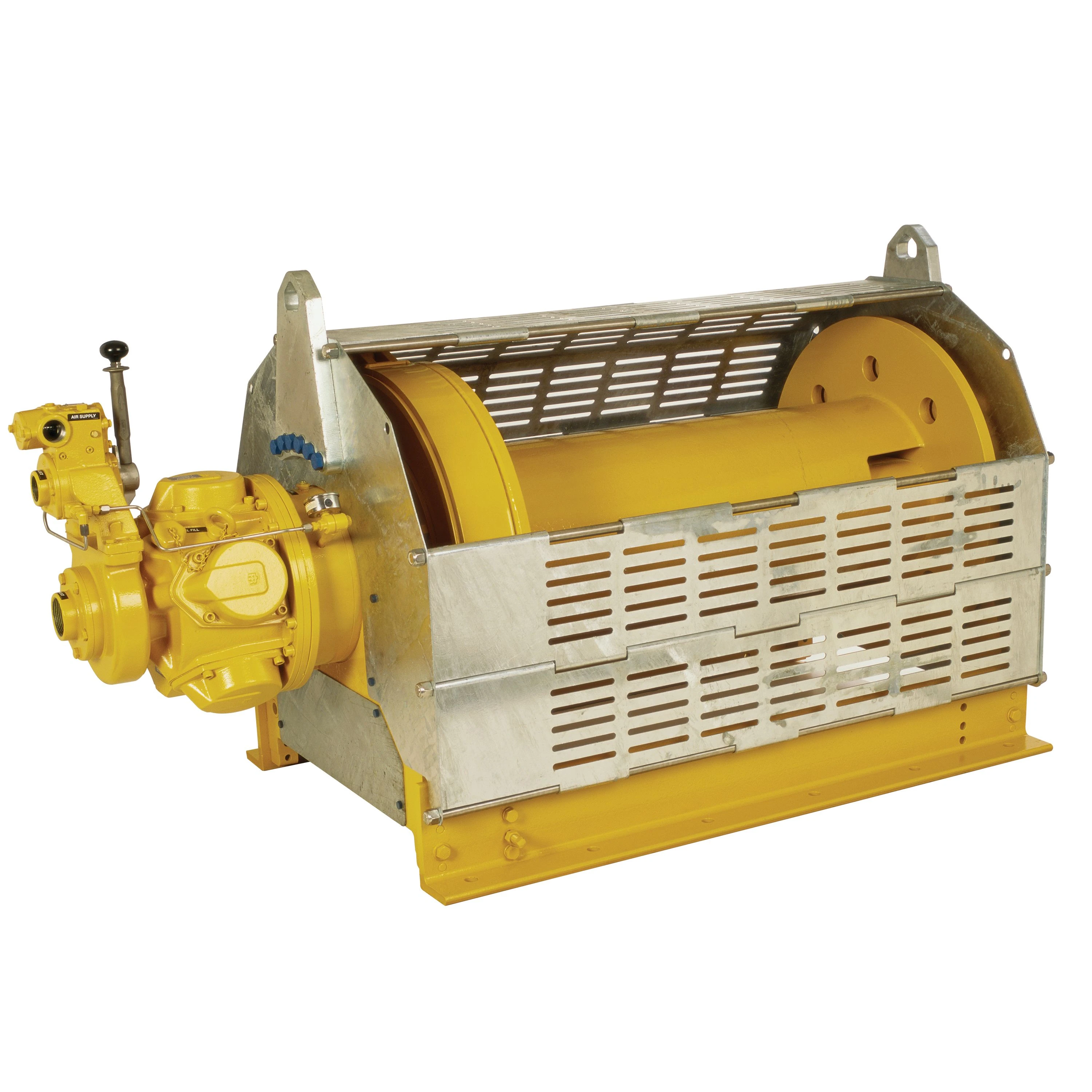

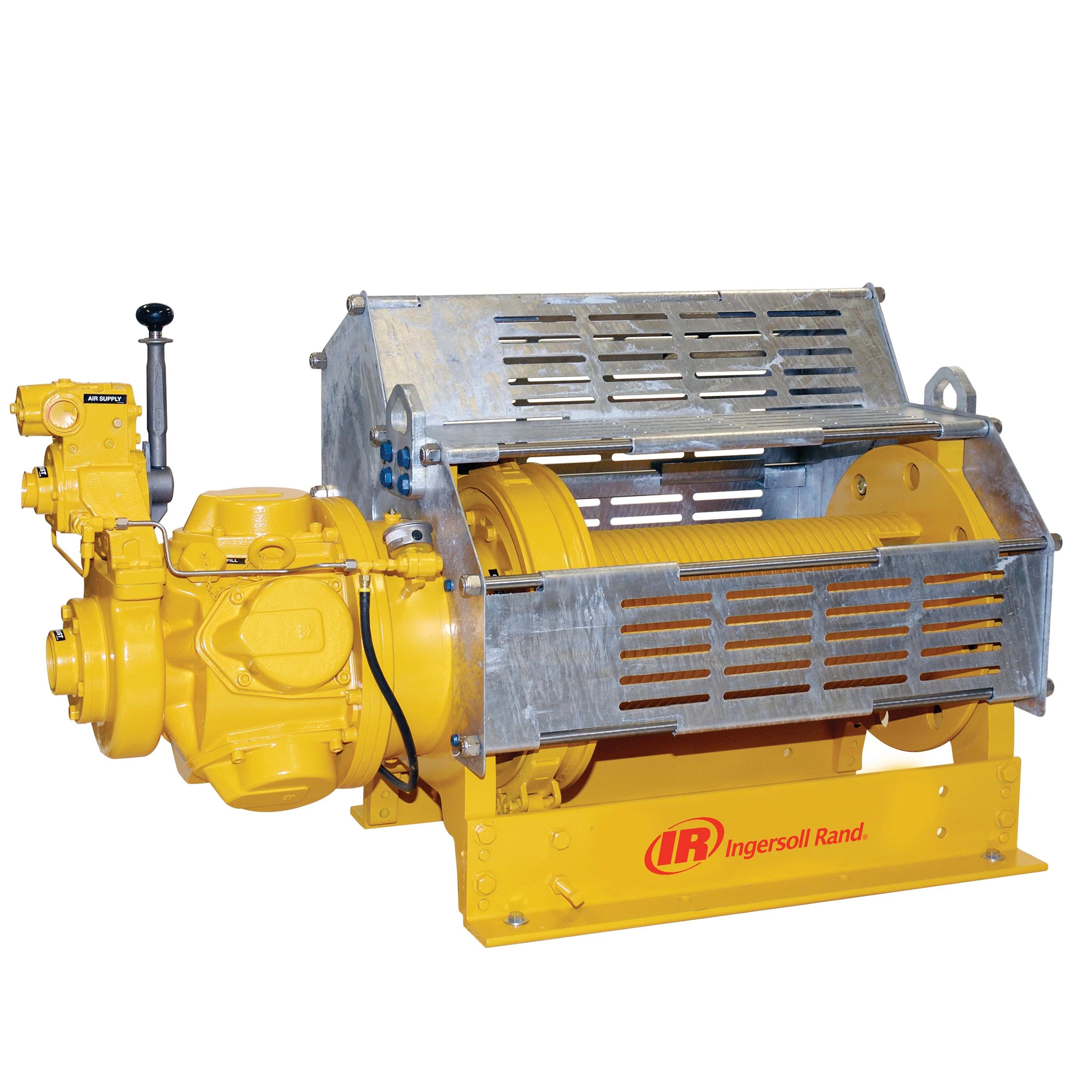

Infinity 绞车
Ingersoll Rand Infinity 绞车是 Ingersoll Rand 绞车系列中的高性能气动绞车。这款绞车采用了功能强大的径向活塞气动马达，可实现高扭矩和精确控制。Ingersoll Rand 从不走捷径，也从不使用劣质组件，其产品采用合理的功能设计并用坚固的铸铁和钢制造。Infinity 绞车有多种尺寸和配置可供选择。这些绞车提供寒冷天气选件并具有型式认证，非常适合恶劣环境应用。
<table>
<thead>
<tr>
<th>Model</th>
<th>FA2i-12**1</th>
<th>FA2i-16**1</th>
<th>FA2i-20**1</th>
<th>FA2i-24**1</th>
<th>FA2.5i-8</th>
<th>FA2.5i-12</th>
<th>FA2.5i-16</th>
<th>FA2.5i-20</th>
<th>FA2.5i-24</th>
<th>FA5i-16**1</th>
<th>FA5i-20**1</th>
<th>FA5i-24**1</th>
<th>FA5i-30**1</th>
<th>FA5i-36**1</th>
<th>FA5Ti-16**1</th>
<th>FA5Ti-20**1</th>
<th>FA5Ti-24**1</th>
<th>FA5Ti-30**1</th>
<th>FA5Ti-36**1</th>
<th>FA7i-20**1</th>
<th>FA7i-24**1</th>
<th>FA7i-30**1</th>
<th>FA7i-36**1</th>
<th>FA7i-42**1</th>
<th>FA7Ti-20**1</th>
<th>FA7Ti-24**1</th>
<th>FA7Ti-30**1</th>
<th>FA7Ti-36**1</th>
<th>FA7Ti-42**1</th>
<th>FA10i-24**1</th>
<th>FA10i-30**1</th>
<th>FA10i-36**1</th>
<th>FA10i-40**1</th>
<th>FA7Ti-GL42XK1</th>
<th>FA7Ti-PL42XK1</th>
</tr>
</thead>
<tbody>
<tr>
<td>Line Pull Capacity First Layer kg (lb)</td>
<td>2,980 (6,600)</td>
<td>2,980 (6,600)</td>
<td>2,980 (6,600)</td>
<td>2,980 (6,600)</td>
<td>3,440 (7,600)</td>
<td>3,440 (7,600)</td>
<td>3,440 (7,600)</td>
<td>3,440 (7,600)</td>
<td>3,440 (7,600)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>7,620 (16,800)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>11,100 (24,500)</td>
<td>16,010 (35,300)</td>
<td>16,010 (35,300)</td>
<td>16,010 (35,300)</td>
<td>16,010 (35,300)</td>
<td>3,620 (8,000)</td>
<td>10,970 (24,200)</td>
</tr>
<tr>
<td>Line Pull Capacity Mid Drum kg (lb)</td>
<td>2,490 (5,500)</td>
<td>2,490 (5,500)</td>
<td>2,490 (5,500)</td>
<td>2,490 (5,500)</td>
<td>2,855 (6,300)</td>
<td>2,855 (6,300)</td>
<td>2,855 (6,300)</td>
<td>2,855 (6,300)</td>
<td>2,855 (6,300)</td>
<td>6,310 (13,900)</td>
<td>6,310 (13,900)</td>
<td>6,310 (13,900)</td>
<td>6,310 (13,900)</td>
<td>6,310 (13,900)</td>
<td>5,710 (12,600)</td>
<td>5,710 (12,600)</td>
<td>5,710 (12,600)</td>
<td>5,710 (12,600)</td>
<td>5,710 (12,600)</td>
<td>9,050 (19,950)</td>
<td>9,050 (19,950)</td>
<td>9,050 (19,950)</td>
<td>9,050 (19,950)</td>
<td>9,050 (19,950)</td>
<td>8,410 (18,550)</td>
<td>8,410 (18,550)</td>
<td>8,410 (18,550)</td>
<td>8,410 (18,550)</td>
<td>8,410 (18,550)</td>
<td>13,005 (28,650)</td>
<td>13,005 (28,650)</td>
<td>13,005 (28,650)</td>
<td>13,005 (28,650)</td>
<td>2,580 (5,700)</td>
<td>7,800 (17,200)</td>
</tr>
<tr>
<td>Line Pull Capacity Top Layer kg (lb)</td>
<td>2,000 (4,400)</td>
<td>2,000 (4,400)</td>
<td>2,000 (4,400)</td>
<td>2,000 (4,400)</td>
<td>2,270 (5,000)</td>
<td>2,270 (5,000)</td>
<td>2,270 (5,000)</td>
<td>2,270 (5,000)</td>
<td>2,270 (5,000)</td>
<td>5,000 (11,000)</td>
<td>5,000 (11,000)</td>
<td>5,000 (11,000)</td>
<td>5,000 (11,000)</td>
<td>5,000 (11,000)</td>
<td>3,810 (8,400)</td>
<td>3,810 (8,400)</td>
<td>3,810 (8,400)</td>
<td>3,810 (8,400)</td>
<td>3,810 (8,400)</td>
<td>7,000 (15,400)</td>
<td>7,000 (15,400)</td>
<td>7,000 (15,400)</td>
<td>7,000 (15,400)</td>
<td>7,000 (15,400)</td>
<td>5,720 (12,600)</td>
<td>5,720 (12,600)</td>
<td>5,720 (12,600)</td>
<td>5,720 (12,600)</td>
<td>5,720 (12,600)</td>
<td>10,000 (22,000)</td>
<td>10,000 (22,000)</td>
<td>10,000 (22,000)</td>
<td>10,000 (22,000)</td>
<td>1,540 (3,400)</td>
<td>4,630 (10,200)</td>
</tr>
<tr>
<td>Lifting Speed at Top Layer(1) m/min (fpm)</td>
<td>16 (51)</td>
<td>16 (51)</td>
<td>16 (51)</td>
<td>16 (51)</td>
<td>40 (132)</td>
<td>40 (132)</td>
<td>40 (132)</td>
<td>40 (132)</td>
<td>40 (132)</td>
<td>16 (54)</td>
<td>16 (54)</td>
<td>16 (54)</td>
<td>16 (54)</td>
<td>16 (54)</td>
<td>21 (70)</td>
<td>21 (70)</td>
<td>21 (70)</td>
<td>21 (70)</td>
<td>21 (70)</td>
<td>12 (40)</td>
<td>12 (40)</td>
<td>12 (40)</td>
<td>12 (40)</td>
<td>12 (40)</td>
<td>15 (48)</td>
<td>15 (48)</td>
<td>15 (48)</td>
<td>15 (48)</td>
<td>15 (48)</td>
<td>7 (23)</td>
<td>7 (23)</td>
<td>7 (23)</td>
<td>7 (23)</td>
<td>48 (159)</td>
<td>18 (60)</td>
</tr>
<tr>
<td>Air Consumption with Rated Load m3/min (ft3/min)</td>
<td>8 (280)</td>
<td>8 (280)</td>
<td>8 (280)</td>
<td>8 (280)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>20 (700)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>21 (750)</td>
<td>23 (800)</td>
<td>23 (800)</td>
<td>23 (800)</td>
<td>23 (800)</td>
<td>21 (750)</td>
<td>21 (750)</td>
</tr>
<tr>
<td>Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)</td>
<td>1.5 (54.9)</td>
<td>1.5 (54.9)</td>
<td>1.5 (54.9)</td>
<td>1.5 (54.9)</td>
<td>1.5 (53)</td>
<td>1.5 (53)</td>
<td>1.5 (53)</td>
<td>1.5 (53)</td>
<td>1.5 (53)</td>
<td>3.8 (129.6)</td>
<td>3.8 (129.6)</td>
<td>3.8 (129.6)</td>
<td>3.8 (129.6)</td>
<td>3.8 (129.6)</td>
<td>2.9 (100.0)</td>
<td>2.9 (100.0)</td>
<td>2.9 (100.0)</td>
<td>2.9 (100.0)</td>
<td>2.9 (100.0)</td>
<td>5.3 (187.5)</td>
<td>5.3 (187.5)</td>
<td>5.3 (187.5)</td>
<td>5.3 (187.5)</td>
<td>5.3 (187.5)</td>
<td>4.2 (156.3)</td>
<td>4.2 (156.3)</td>
<td>4.2 (156.3)</td>
<td>4.2 (156.3)</td>
<td>4.2 (156.3)</td>
<td>9.9 (347.8)</td>
<td>9.9 (347.8)</td>
<td>9.9 (347.8)</td>
<td>9.9 (347.8)</td>
<td>1.3 (47.2)</td>
<td>3.5 (125.0)</td>
</tr>
<tr>
<td>Sound Level as per EN 14492-1 dB(A)</td>
<td>87</td>
<td>87</td>
<td>87</td>
<td>87</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>97</td>
<td>101</td>
<td>101</td>
<td>101</td>
<td>101</td>
<td>97</td>
<td>97</td>
</tr>
<tr>
<td>Drum Capacity Rope Length m (ft)</td>
<td>210 (702)</td>
<td>283 (946)</td>
<td>356 (1,190)</td>
<td>429 (1,434)</td>
<td>80 (265)</td>
<td>124 (410)</td>
<td>167 (554)</td>
<td>211(698)</td>
<td>255 (842)</td>
<td>259 (883)</td>
<td>327 (1,114)</td>
<td>395 (1,346)</td>
<td>497 (1,693)</td>
<td>600 (2,041)</td>
<td>496 (1,863)</td>
<td>626 (2,352)</td>
<td>757 (2,841)</td>
<td>952 (3,575)</td>
<td>1,148 (4,308)</td>
<td>319 (1,038)</td>
<td>385 (1,256)</td>
<td>485 (1,581)</td>
<td>585 (1,907)</td>
<td>685 (2,233)</td>
<td>548 (1,786)</td>
<td>662 (2,160)</td>
<td>834 (2,720)</td>
<td>1,006 (3,281)</td>
<td>1,178 (3,841)</td>
<td>376 (1,218)</td>
<td>475 (1,537)</td>
<td>574 (1,857)</td>
<td>640 (2,070)</td>
<td>2,042 (7,480)</td>
<td>4,825 (16,925)</td>
</tr>
<tr>
<td>Drum Capacity Rope Diameter mm (in)</td>
<td>13 (1/2)</td>
<td>13 (1/2)</td>
<td>13 (1/2)</td>
<td>13 (1/2)</td>
<td>16 (5/8)</td>
<td>16 (5/8)</td>
<td>16 (5/8)</td>
<td>16 (5/8)</td>
<td>16 (5/8)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>20 (3/4)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>22 (7/8)</td>
<td>28 (1-1/8)</td>
<td>28 (1-1/8)</td>
<td>28 (1-1/8)</td>
<td>28 (1-1/8)</td>
<td>20 (3/4)</td>
<td>13 (1/2)</td>
</tr>
<tr>
<td>Net Weight kg (lb)</td>
<td>386 (850)</td>
<td>386 (850)</td>
<td>386 (850)</td>
<td>386 (850)</td>
<td>481 (1,061)</td>
<td>481 (1,061)</td>
<td>481 (1,061)</td>
<td>481 (1,061)</td>
<td>481 (1,061)</td>
<td>849 (1,872)</td>
<td>849 (1,872)</td>
<td>849 (1,872)</td>
<td>849 (1,872)</td>
<td>849 (1,872)</td>
<td>977 (2,153)</td>
<td>977 (2,153)</td>
<td>977 (2,153)</td>
<td>977 (2,153)</td>
<td>977 (2,153)</td>
<td>1,000 (2,205)</td>
<td>1,000 (2,205)</td>
<td>1,000 (2,205)</td>
<td>1,000 (2,205)</td>
<td>1,000 (2,205)</td>
<td>1,059 (2,335)</td>
<td>1,059 (2,335)</td>
<td>1,059 (2,335)</td>
<td>1,059 (2,335)</td>
<td>1,059 (2,335)</td>
<td>1,451 (3,200)</td>
<td>1,451 (3,200)</td>
<td>1,451 (3,200)</td>
<td>1,451 (3,200)</td>
<td>1,352 (2,981)</td>
<td>1,293 (2,850)</td>
</tr>
</tbody>
</table>
Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90) psi at air inlet when winch is operating.
(1) Top layer speed is based on rated capacity.

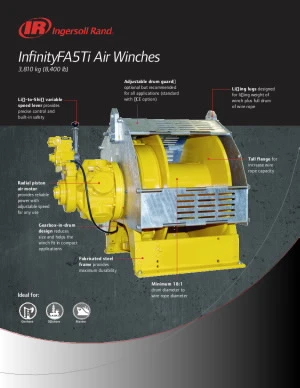

Infinity FA5Ti Flyer

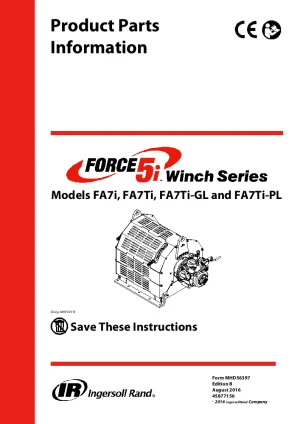

7 ton - Product Parts Information - Force 5i Winch Series

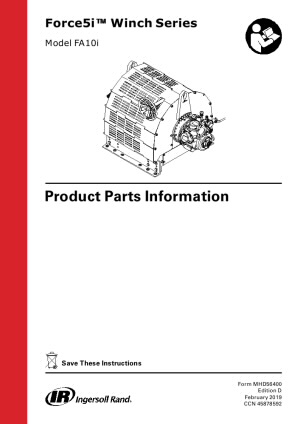

10 ton - Product Parts Information - Force5i Winch Series

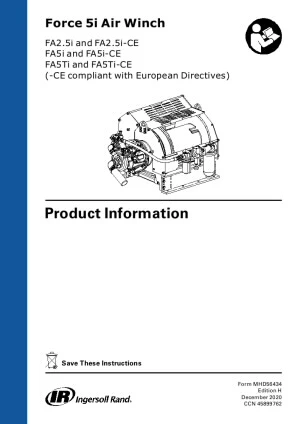

5 ton - Product Information - Force 5i Air Winch

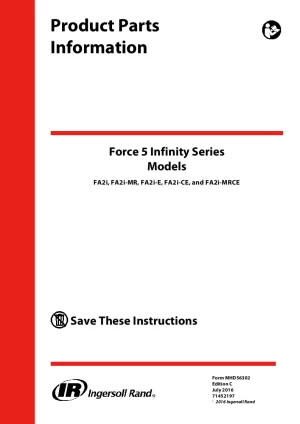

2 ton - FA2i Product Parts Information

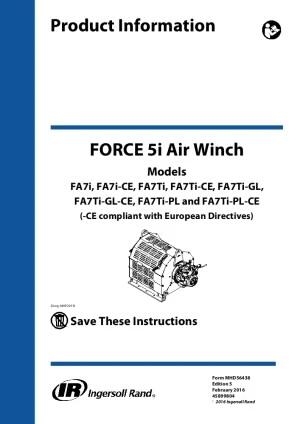

7 ton - Product Information - Force 5i Air Winch

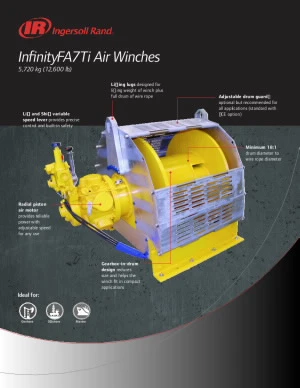

Infinity FA7Ti Flyer

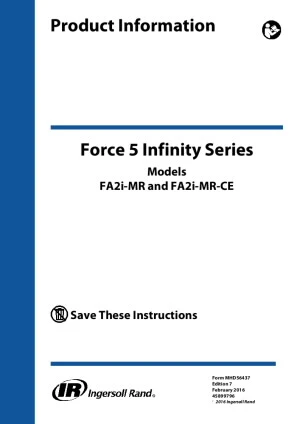

2 ton - MHD56437, PRODUCT INFO, FA2I-MR AND FA2I-MR-CE

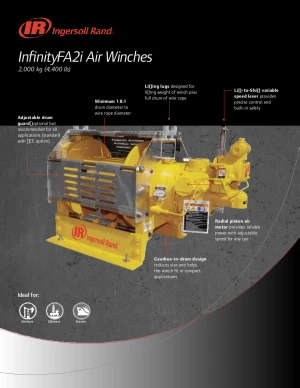

IRITS0615062 InfinityFA2i Flyer
2 ton - Infinity Air Winches FA2iXK1CE with Auto Disc Brake CE

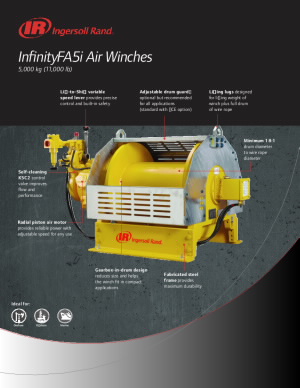

Infinity FA5i Flyer
5 ton - Infinity Air Winches FA25i12MK1 with Manual Band Auto Disc Brake
5 ton - Product Information - Force 5i Air Winch
2 ton - Infinity Dual Purpose Air Winches FA2iMRMK1CE with Manual Band Auto Disc Brake CE
7 ton - Infinity Air Winches FA7TiXK1CE with Auto Disc Brake CE
无文件名
2 ton - Infinity Air Winches FA2iMK1 with Manual Band Auto Disc Brake
10 ton - Product Parts Information - Force5i Winch Series
5 ton - Infinity Air Winches FA25iXK1 with Auto Disc Brake
5 ton - Infinity Air Winches FA5iXK1CE with Auto Disc Brake CE
5 ton - Infinity Air Winches FA5iMK1 with Manual Band Auto Disc Brake
5 ton - Infinity Air Winches FA25i8XK1 with Auto Disc Brake
Infinity FA7i Flyer.

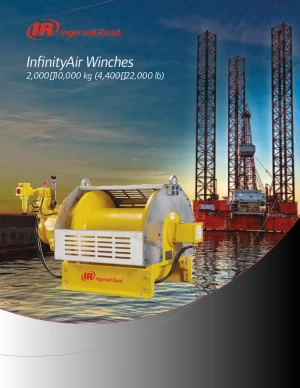

Infinity Brochure

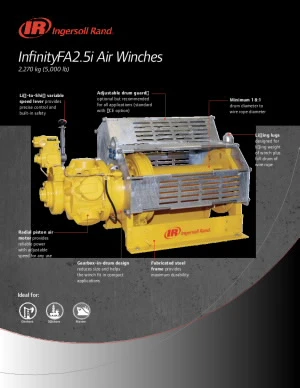

IRITS0615063 Infinity FA25i Flyer

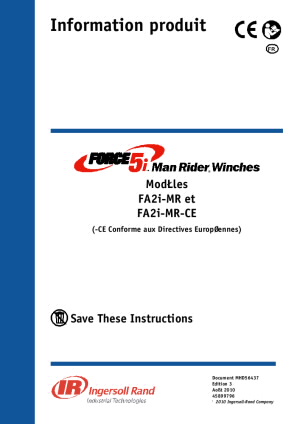

2 ton - PRODUCT INFORMATION, FA2I-MR AND FA2I-MR-CE (FRENCH)
5 ton - Infinity Air Winches FA5TiXK1 Tall Flange with Auto Disc Brake

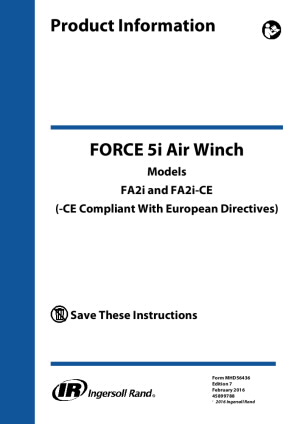

2 ton - FA2I FA2I-CE PRODUCT INFORMATION MANUAL
2 ton - Infinity Air Winches FA2iXK1 with Auto Disc Brake CE
5 ton - Infinity Air Winches FA5iXK1 with Auto Disc Brake
2 ton - PRODUCT INFORMATION, FA2I-MR AND FA2I-MR-CE
5 ton - Infinity Air Winches FA25iMK1 with Manual Band Auto Disc Brake

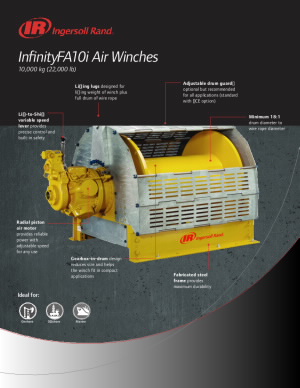

Infinity FA10i Flyer
第三代两用气动绞车
- 920 - 3,600 千克（2,035 - 8,000 磅）起重能力
- 近海、陆上和海洋应用的理想选择
- 载人载物两用
Liftstar® 和 Pullstar® 液压绞车
- 600-7,000 千克（1,320-15,430 磅）起重能力
- 高扭矩、高效率液压马达
- 重型便携式和固定式型号
- 易于配置以符合 ANSI/ASME 和 CE 标准
第三代气动绞车
- 1,450 - 3,600 千克（3,200 - 8,000 磅）起重能力
- 造船、钢铁、重大建筑工程、海洋、近海和陆上应用的理想选择
- 按照 ISO 9001 质量标准制造
Liftstar® 和 Pullstar® 气动绞车
- 300-7,500 千克（660-16,530 磅）起重能力
- 低维护齿轮式气动马达
- 重型便携式和固定式型号
- 易于配置以符合 ANSI/ASME 和 CE 标准
Fulcrum 电动绞车
- 2,400-20,000 千克（5,300-45,600 磅）起重能力
- 高扭矩 NEMA B 级电动马达
- 2 年保修
- 符合或超过北美 ANSI/ASME B30.7 标准

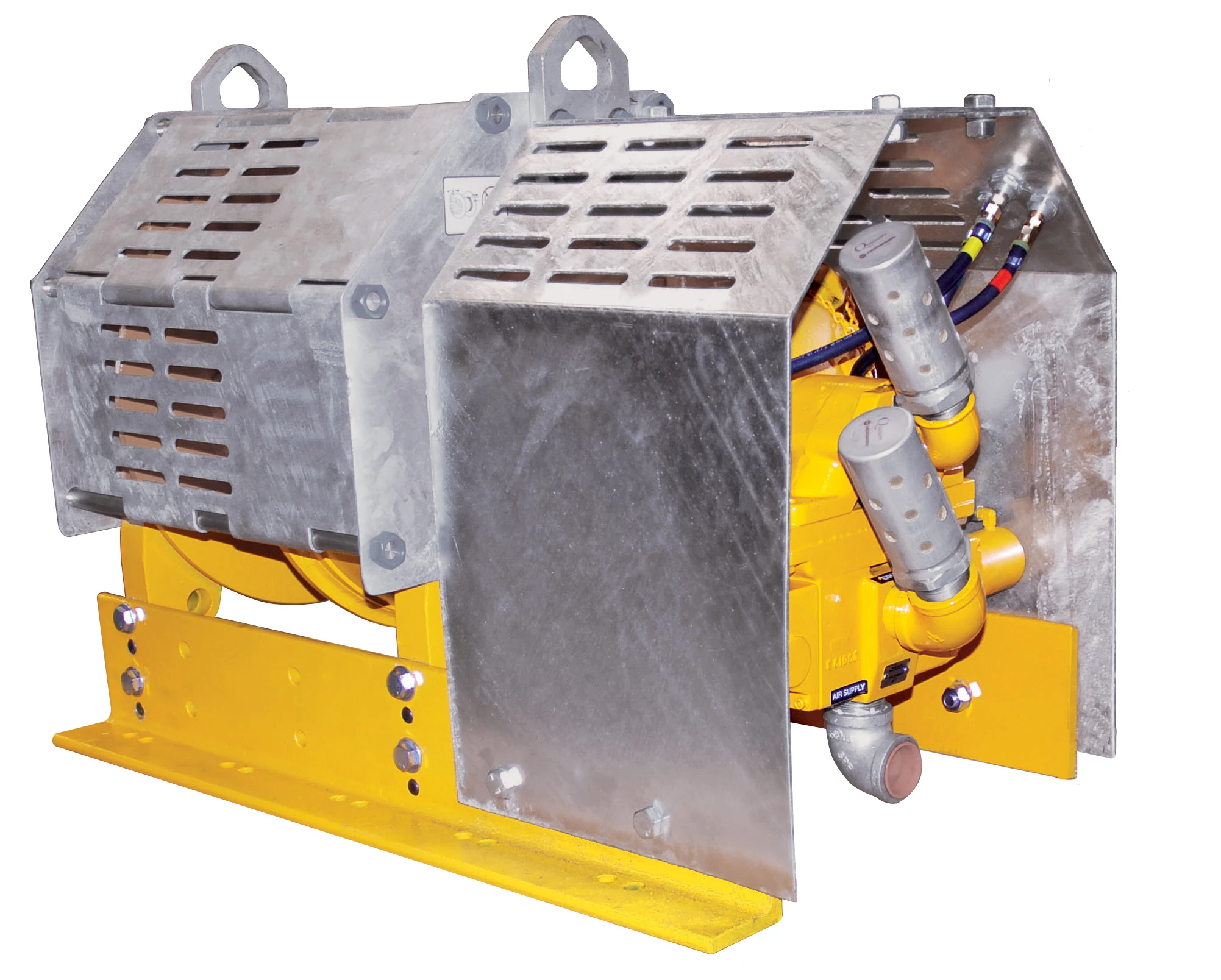

矿用绞车
- 1,996 千克（4,400 磅）起重能力
- 符合 ASME B30.7 标准
- 可靠的气动马达
- 采矿作业的理想选择
Infinity 两用气动绞车
- 1,450-2,000 千克（3,180-5,000 磅）起重能力
- 两用提升 - 人员和物料
- 可靠的径向柱塞气动马达
Classic 气动绞车
- 360-680 千克（800-1,500 磅）起重能力
- 符合或超过北美 ASME B30.7 绞车标准
- 用于精确定位的专有变速节流阀
